Getrag 240 náhon tachometru for BMW 3 Series E21 316 (1982)

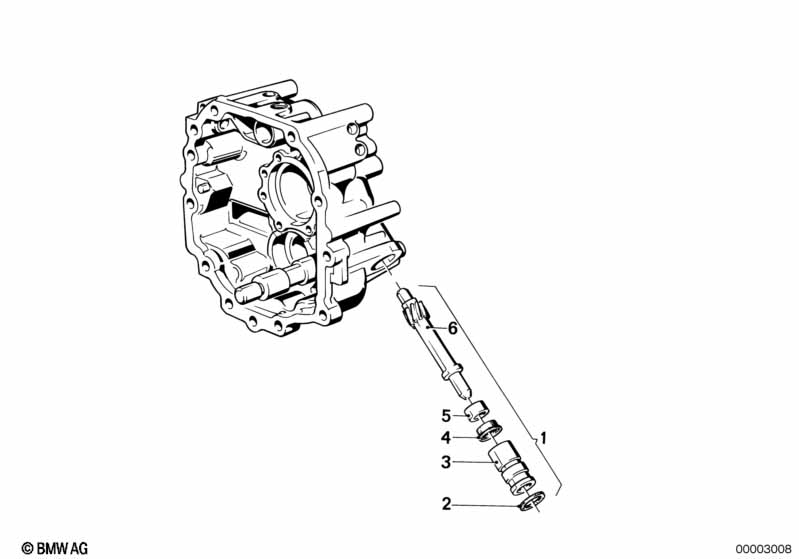

This Getrag 240 náhon tachometru technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Náhon tachometru | 1 | 09/1982 | 23211207772 | $149.91 | UKONČENO | Shop at ECS Tuning | |||
| 02 | O-kroužek | 19,5X3 | 1 | 09/1982 | 11431740045 | $1.81 | Shop at ECS Tuning | |||
| 03 | Zásuvka | 1 | 09/1982 | 23211202751 | $88.92 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Hřídelový těsnicí kroužek | 8X14X6 | 1 | 09/1982 | 23121490192 | $14.05 | Shop at ECS Tuning | |||
| 05 | Pouzdro | 1 | 09/1982 | 23121630176 | $1.21 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Náhon tachometru | 1 | 09/1982 | 23221200416 | $105.44 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Getrag 240 náhon tachometru?
- This technical diagram illustrates the Getrag 240 náhon tachometru within the Převodovka mechanická group for the 3 Series E21 316 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Náhon tachometru (Part #23211207772).
- Which models use the hardware listed in this Getrag 240 náhon tachometru?
- The hardware and components featured in the Getrag 240 náhon tachometru are specific to the 3 Series E21 316 produced during 1982. These technical specifications ensure that parts like the Náhon tachometru (23211207772) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 240 náhon tachometru assembly?
- Each item in the Getrag 240 náhon tachometru corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Náhon tachometru by locating its position on the schematic, which then links to the official BMW part number 23211207772 for the Převodovka mechanická section.
