Getrag 260/5/50 (Sport) součásti soukolí for BMW 3 Series E30 325ix (1991)

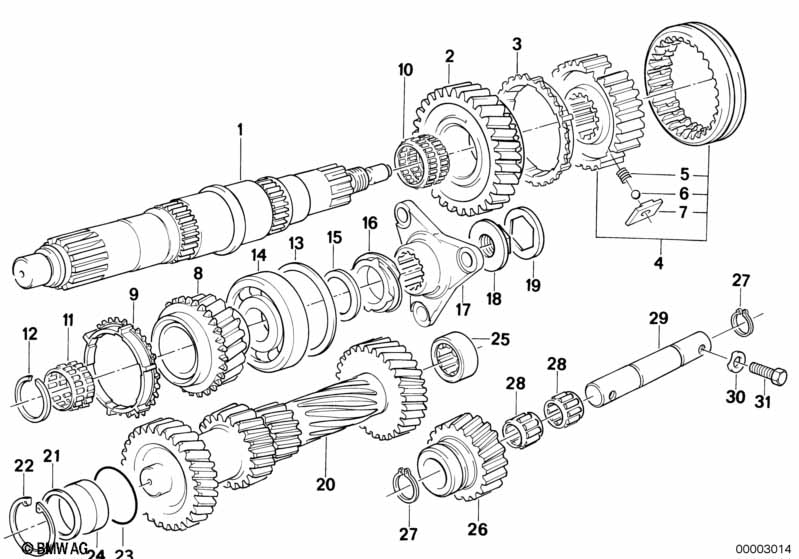

This Getrag 260/5/50 (Sport) součásti soukolí technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výstupní hřídel | 1 | 23211224294 | $756.48 | Shop at ECS Tuning | |||||
| 02 | Řadicí kolo zpětný chod | 1 | 23221228159 | $597.06 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Synchronizační kroužek | 1 | 23231228096 | $121.90 | Shop at ECS Tuning | |||||
| 04 | Vodicí pouzdro 5.a zpátečky | 1 | 23231228224 | $294.45 | Shop at ECS Tuning | |||||
| 05 | Tlačná pružina | 3 | 23231224368 | $6.45 | Shop at ECS Tuning | |||||
| 06 | Kulička | 3 | 23231224365 | $1.02 | Shop at ECS Tuning | |||||
| 07 | Unášecí kámen | 3 | 23231224364 | $2.82 | Shop at ECS Tuning | |||||
| 08 | Řadicí kolo 5. převodového stupně | 1 | 23221228101 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Synchronizační kroužek | 1 | 23231228097 | $121.90 | Shop at ECS Tuning | |||||
| 10 | Jehlová klec | 50X55X30 | 1 | 23221224287 | $53.80 | Shop at ECS Tuning | ||||
| 11 | Jehlová klec | 40X35X28,5 | 1 | 23221224177 | $16.50 | Shop at ECS Tuning | ||||
| 12 | Pojistný kroužek | 52X44X2,00 | 2 | 23221224190 | $3.18 | Shop at ECS Tuning | ||||
| 12 | Pojistný kroužek | 52X44X1,95 | 2 | 23221224191 | $5.25 | Shop at ECS Tuning | ||||
| 12 | Pojistný kroužek | 52X44X1,90 | 2 | 23221224192 | $3.42 | Shop at ECS Tuning | ||||
| 12 | Pojistný kroužek | 52X44X1,85 | 2 | 23221224193 | $3.40 | Shop at ECS Tuning | ||||
| 12 | Pojistný kroužek | 52X44X1,80 | 2 | 23221224194 | $3.40 | Shop at ECS Tuning | ||||
| 13 | Vymezovací podložka | 80X66X0,3 | 2 | 23221224376 | $9.81 | Shop at ECS Tuning | ||||
| 13 | Vymezovací podložka | 80X66X0,4 | 2 | 23221224377 | $4.08 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Vymezovací podložka | 80X66X0,5 | 2 | 23221224378 | $7.02 | Shop at ECS Tuning | ||||
| 14 | Kuličkové ložisko | 80X30X20 | 1 | 23121224166 | $74.42 | Shop at ECS Tuning | ||||
| 15 | Opěrná podložka | 1 | 23221224181 | $7.38 | Shop at ECS Tuning | |||||
| 20 | Předlohový hřídel | 1 | 23211228103 | UKONČENO | Shop at ECS Tuning | |||||
| 21 | Vymezovací podložka | 44X36,5X1,7 | 2 | 23221224092 | $1.58 | Shop at ECS Tuning | ||||
| 21 | Vymezovací podložka | 44X36,5X1,8 | 2 | 23221224093 | $2.43 | Shop at ECS Tuning | ||||
| 21 | Vymezovací podložka | 44X36,5X2,0 | 2 | 23221224094 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Vymezovací podložka | 44X36,5X2,1 | 2 | 23221224095 | $1.22 | Shop at ECS Tuning | ||||
| 21 | Vymezovací podložka | 2 | 23221224096 | $1.22 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Vymezovací podložka | 44X36,5X1,0 | 2 | 23221224223 | $2.41 | Shop at ECS Tuning | ||||
| 21 | Vymezovací podložka | 44X36,5X2,3 | 2 | 23221224224 | $1.51 | UKONČENO | Shop at ECS Tuning | |||
| 22 | Pojistný kroužek | 44X1,75 | 1 | 23221224078 | $2.13 | Shop at ECS Tuning | ||||
| 23 | O-kroužek | 44X1,5 | 1 | 23211228152 | $1.43 | UKONČENO | Shop at ECS Tuning | |||
| 24 | Válečkové ložisko | 44X25X19,65 | 1 | 23121224076 | $38.75 | Shop at ECS Tuning | ||||
| 25 | Válečkové pouzdro | 44X25X19,65 | 1 | 23121224077 | Shop at ECS Tuning | |||||
| 26 | Kolo zpětného chodu | 1 | 23221282391 | $239.94 | UKONČENO | Shop at ECS Tuning | ||||
| 27 | Rozpěrný kroužek | 22X3X2,5 | 2 | 23221224184 | $3.30 | Shop at ECS Tuning | ||||
| 28 | Jehlová klec | 30X22X15 | 2 | 23211206957 | $10.52 | Shop at ECS Tuning | ||||
| 29 | Náprava pro dvojkolo | 1 | 23221224180 | $46.04 | UKONČENO | Shop at ECS Tuning | ||||
| 30 | Pružná podložka | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 31 | Šestihranný šroub | M8X25 | 1 | 34331152651 | $12.34 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
