5stupňová převodovka for BMW R45-R65LS..78-85 R65LS (1983)

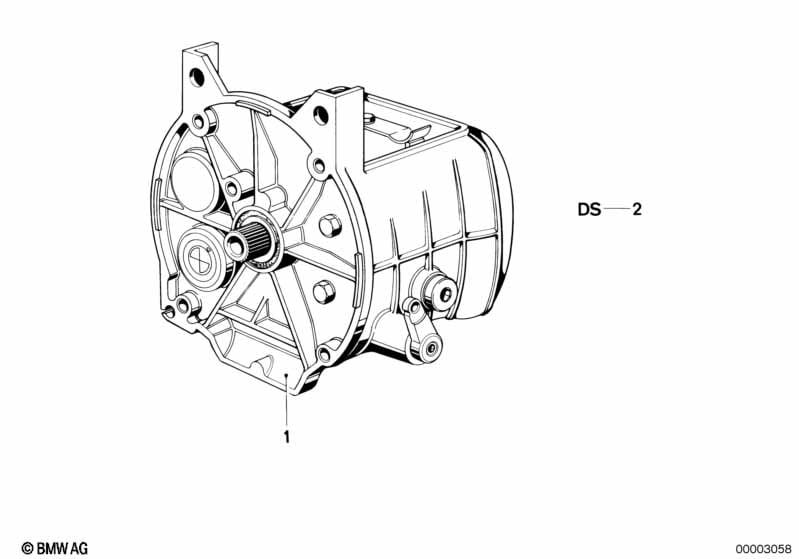

This 5stupňová převodovka technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 5stupňová převodovka | 1 | 09/1980 | 23002301786 | $2981.70 | UKONČENO, +core | Shop at ECS Tuning | |||
| 01 | 5stupňová převodovka nožní spouštěč | 1 | 09/1980 | 23002301794 | $3237.95 | UKONČENO, +core | Shop at ECS Tuning | |||
| 02 | Sada těsnění 5stupňová převodovka | 1 | 09/1980 | 23001338601 | UKONČENO | Shop at ECS Tuning | ||||
| Odpadá, proto použijte jednotlivé díly- viz Katalog součástí |
||||||||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
