Výstupní hřídel for BMW R45-R65LS..78-85 R65LS (1983)

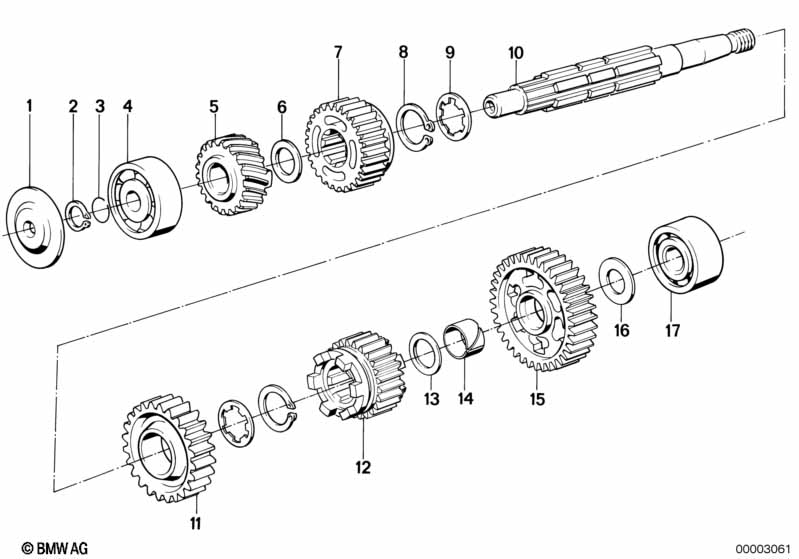

This Výstupní hřídel technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Krycí plech | 1 | 23121230075 | $21.60 | Shop at ECS Tuning | |||||
| 02 | Pojistný kroužek | 17X1 | 1 | 07119934100 | $0.75 | Shop at ECS Tuning | ||||
| 03 | Rozpěrný kroužek | 1 | 23211235006 | $2.06 | Shop at ECS Tuning | |||||
| 04 | Radiální kuličkové ložisko | 17X62X17 | 1 | 23121338795 | $60.12 | +core | Shop at ECS Tuning | |||
| 05 | Ozubené kolo 5. stupeň | 17.5°DEG | 1 | 04/1982 | 23221242992 | $122.95 | UKONČENO, +core | Shop at ECS Tuning | ||
| pouze společně s | ||||||||||
| -- | Ozubené kolo 3. stupeň | 1 | 04/1982 | 23221234886 | $151.98 | +core | Shop at ECS Tuning | |||
| 06 | Vymezovací podložka | 2.000MM | 1 | 23211231616 | $3.35 | Shop at ECS Tuning | ||||
| 07 | Ozubené kolo 3. stupeň | 1 | 23221234886 | $151.98 | +core | Shop at ECS Tuning | ||||
| 08 | Pojistný kroužek | 28X1,5 | 1 | 07119907340 | Shop at ECS Tuning | |||||
| 09 | Podložka | 2 | 23211231633 | $2.71 | Shop at ECS Tuning | |||||
| 10 | Výstupní hřídel | 1 | 23211338793 | $554.33 | +core, SI 2301094(665) | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Radiální kuličkové ložisko | 17X62X17 | 1 | 23121338795 | $60.12 | +core, SI 2301094(665) | Shop at ECS Tuning | |||
| -- | Pojistný kroužek | 17X1 | 1 | 07119934100 | $0.75 | Shop at ECS Tuning | ||||
| 11 | Ozubené kolo 2. stupeň | 1 | 23221231527 | $123.39 | +core | Shop at ECS Tuning | ||||
| 12 | Ozubené kolo 4. stupeň | 1 | 23221234213 | $149.76 | +core | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Řadicí vidlice 1. a 2. stupeň | 1 | 23311234215 | $124.28 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 13 | Vymezovací podložka | 1.000MM | 1 | 23211454099 | $14.05 | Shop at ECS Tuning | ||||
| 14 | Pouzdro | 1 | 23211232299 | $23.26 | Shop at ECS Tuning | |||||
| 15 | Ozubené kolo 1. převodového stupně | 1 | 23221231523 | $136.34 | +core | Shop at ECS Tuning | ||||
| 16 | Opěrná podložka | 20X32X1.5 | 1 | 23211231630 | $6.03 | Shop at ECS Tuning | ||||
| 17 | Radiální kuličkové ložisko | 6304 C3 | 1 | 23121231495 | $27.14 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
- SI = Service-Information (Servisní informace)
