Řadicí vidlice/pastorek tachom./výstup for BMW R45-R65LS..78-85 R65LS (1983)

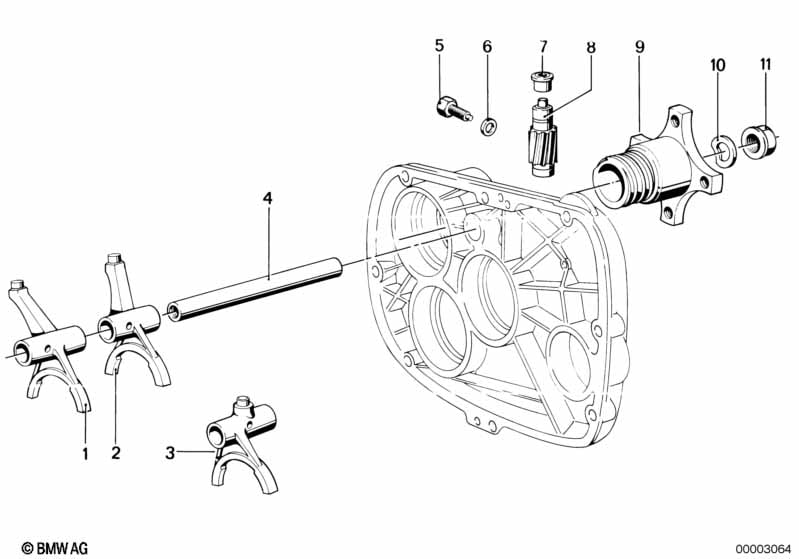

This Řadicí vidlice/pastorek tachom./výstup technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Řadicí vidlice 5. stupeň | 1 | 23311234219 | $124.28 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 02 | Řadicí vidlice 1. a 2. stupeň | 1 | 23311234215 | $124.28 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 03 | Řadicí vidlice 3. a 4. stupeň | 1 | 23311234217 | $124.28 | +core | Shop at ECS Tuning | ||||
| 04 | Hřídel řazení | 1 | 23311231643 | $45.85 | +core | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | 1 | 23111230599 | $11.45 | Shop at ECS Tuning | |||||
| 06 | Pružná podložka černá | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Podložka | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Pouzdro | 1 | 23221030176 | $2.36 | Shop at ECS Tuning | |||||
| 08 | Náhon tachometru | 1 | 23221230058 | $86.50 | +core | Shop at ECS Tuning | ||||
| 09 | Unášecí příruba | 1 | 23211232557 | $103.71 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 10 | Pružná podložka | B16 | 1 | 07119932162 | $0.24 | Shop at ECS Tuning | ||||
| 11 | Matice s nákružkem | M16X1.5 | 1 | 23211230084 | $5.71 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
