Nožní spouštěč for BMW R45-R65LS..78-85 R65LS (1983)

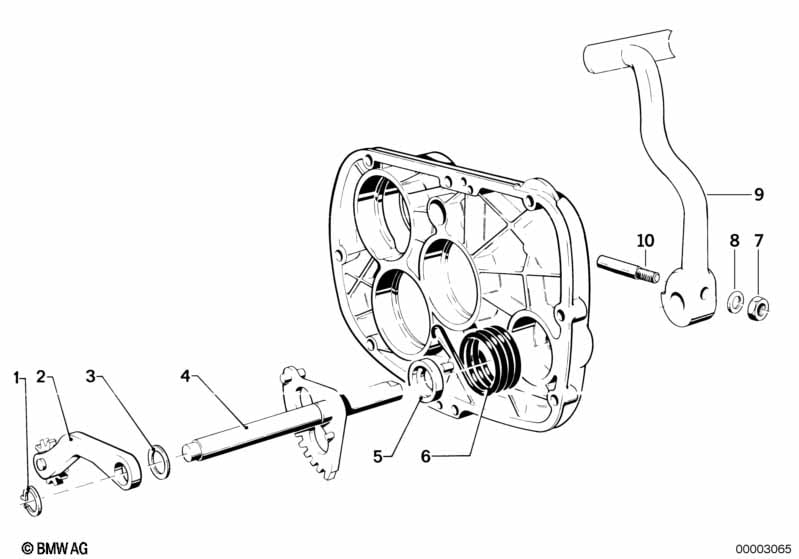

This Nožní spouštěč technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pojistný kroužek | 17X1 | 1 | 07119934100 | $0.75 | Shop at ECS Tuning | ||||
| 02 | Uchycení | 1 | 23511231673 | $62.01 | Shop at ECS Tuning | |||||
| 03 | Podložka | 1 | 23511232090 | $2.71 | Shop at ECS Tuning | |||||
| 04 | Dělená hřídel nožní spouštěč | 1 | 23511338609 | $304.62 | Shop at ECS Tuning | |||||
| 05 | Podložka | 1 | 23511232049 | $28.31 | Shop at ECS Tuning | |||||
| 06 | Pružina | 1 | 23511231682 | $14.80 | Shop at ECS Tuning | |||||
| 07 | Šestihranná matice | M8-8-ZNS3 | 1 | 02/1996 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Šestihranná matice | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Páka nožního spouštěče | 1 | 23511230055 | $193.03 | +core | Shop at ECS Tuning | ||||
| 10 | Šroub | 1 | 23511056124 | $12.61 | Shop at ECS Tuning |
