Getrag 242 součásti soukolí for BMW 3 Series E30 318i (1991)

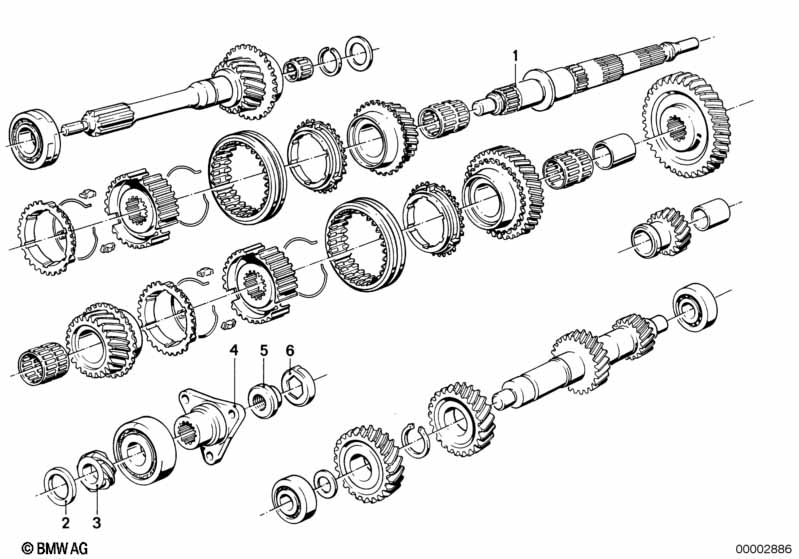

This Getrag 242 součásti soukolí technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výstupní hřídel | 1 | 23211206939 | $934.65 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Vymezovací podložka | 33,1X42X2,10 | X | 23221630215 | $4.83 | Shop at ECS Tuning | ||||
| 02 | Vymezovací podložka | 33,1X42X2,15 | X | 23221630216 | $5.17 | Shop at ECS Tuning | ||||
| 02 | Vymezovací podložka | 33,1X42X2,20 | X | 23221630217 | $5.17 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Vymezovací podložka | 33,1X42X2,25 | X | 23221630218 | $4.97 | Shop at ECS Tuning | ||||
| 02 | Vymezovací podložka | 33,1X42X2,30 | X | 23221630219 | $5.17 | Shop at ECS Tuning | ||||
| 02 | Vymezovací podložka | 33,1X42X2,35 | X | 23221630220 | $5.17 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Vymezovací podložka | 33,1X42X2,40 | X | 23221630221 | $5.17 | Shop at ECS Tuning | ||||
| 03 | Distanční pouzdro | 1 | 23211224050 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Hnaná příruba | 1 | 23211208743 | $150.23 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Matice s nákružkem | M20X1,5 | 1 | 23217572241 | $10.36 | Shop at ECS Tuning | ||||
| 06 | Pojistná podložka | 1 | 23211490120 | $1.43 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
