GS5-65BH diferenciál for BMW MINI R50 Cooper (2000)

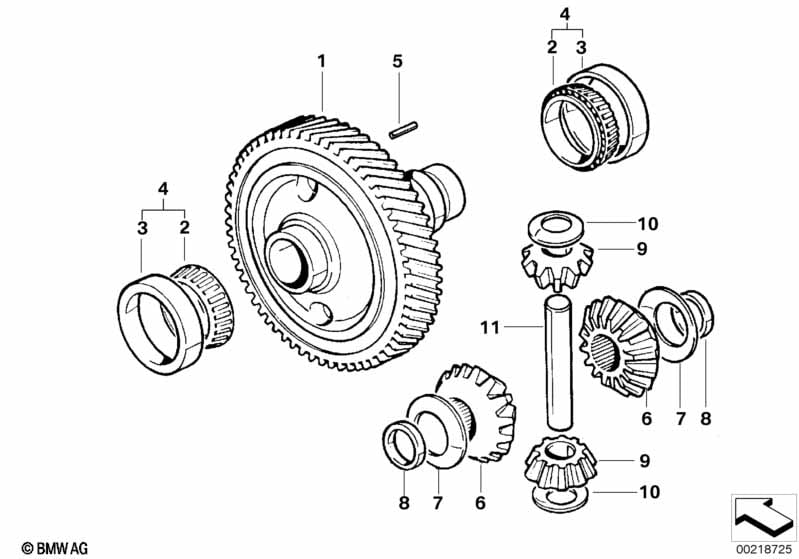

This GS5-65BH diferenciál technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skříň diferenciálu hnací kolo | 1 | 07/2004 | 31532348905 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Kuželíkové ložisko | 2 | 07/2004 | 31532180463 | +core | Shop at ECS Tuning | ||||
| 03 | Kuželíkové ložisko | 2 | 07/2004 | 31532180463 | +core | Shop at ECS Tuning | ||||
| 04 | Kuželíkové ložisko | 2 | 07/2004 | 31532180463 | +core | Shop at ECS Tuning | ||||
| 05 | Pojistný kolík | 2 | 07/2004 | 31530662634 | $2.26 | Shop at ECS Tuning | ||||
| 06 | Drive shaft sprocket | 2 | 07/2004 | 31531031013 | $25.25 | Shop at ECS Tuning | ||||
| 07 | Opěrná podložka | 2 | 07/2004 | 31531031073 | $3.75 | Shop at ECS Tuning | ||||
| 08 | Distanční trubka | 2 | 07/2004 | 31531031094 | $2.11 | Shop at ECS Tuning | ||||
| 09 | Drive pinion | 2 | 07/2004 | 31531031046 | $19.54 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Opěrná podložka | 2 | 07/2004 | 31530662639 | $2.63 | Shop at ECS Tuning | ||||
| 11 | Čep | 1 | 07/2004 | 23001814201 | $8.56 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
