Převodovka montážní díly for BMW 3 Series E21 320 (1979)

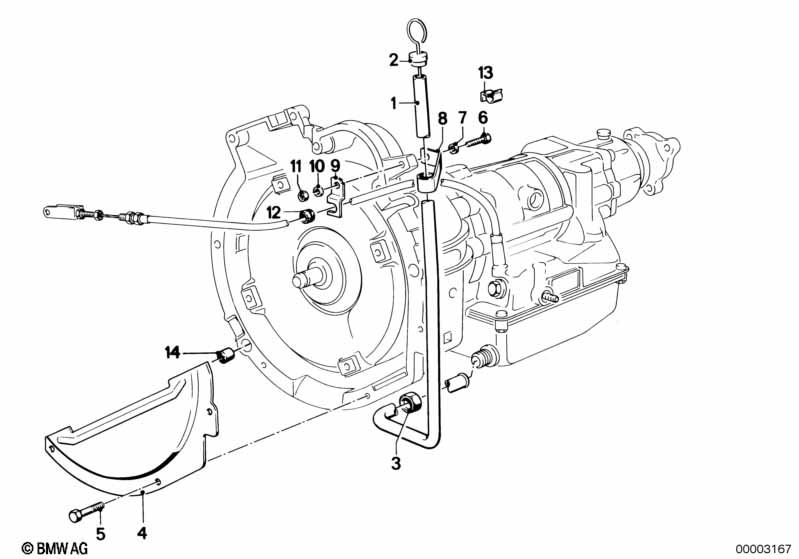

This Převodovka montážní díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Olejová plnicí trubka | 1 | 24111206551 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Olejová měrka | 1 | 24111216250 | $15.78 | Shop at ECS Tuning | |||||
| 03 | Převlečná matice | 1 | 24111205649 | $5.61 | Shop at ECS Tuning | |||||
| 04 | Krycí plech | 1 | 24111206905 | $5.80 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub | M6X16-8.8-ZNS3 | 5 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Pružná podložka černá | B6-ZN | 5 | 09/1983 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 07 | Podložka | 5.3-140 HV-ZNS | 5 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Pružná podložka | B6-ZNS3 | 5 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Uchycení | 1 | 24111206938 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Uchycení | 1 | 24511205837 | $0.43 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Převodovka montážní díly?
- This technical diagram illustrates the Převodovka montážní díly within the Převodovka automatická group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Olejová plnicí trubka (Part #24111206551).
- Which models use the hardware listed in this Převodovka montážní díly?
- The hardware and components featured in the Převodovka montážní díly are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Olejová plnicí trubka (24111206551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Převodovka montážní díly assembly?
- Each item in the Převodovka montážní díly corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Olejová plnicí trubka by locating its position on the schematic, which then links to the official BMW part number 24111206551 for the Převodovka automatická section.
