ZF 3HP22 hnací spojka A for BMW 7 Series E23 732i (1982)

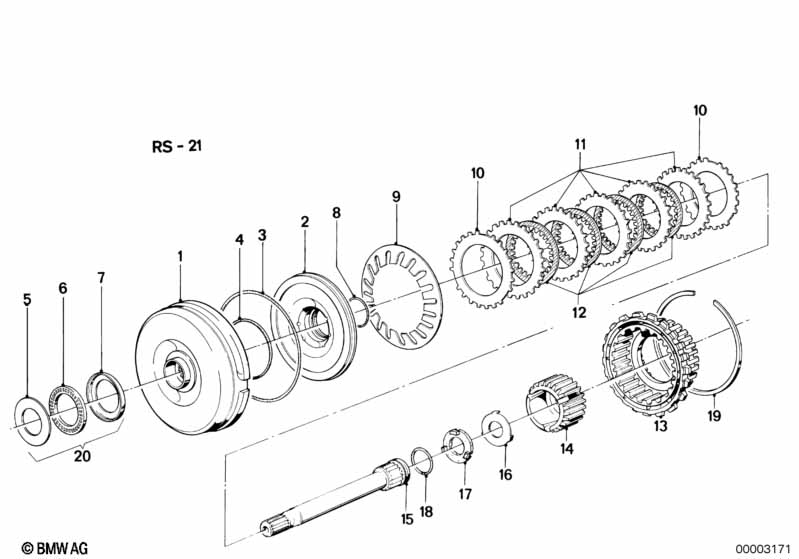

This ZF 3HP22 hnací spojka A technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Válec | 1 | 24211206821 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Píst | 1 | 24231206822 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | O-kroužek | 1 | 24231217083 | $10.11 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | O-kroužek | 1 | 24231206823 | $5.26 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | AX-Ložisko | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 06 | AX-Ložisko | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 07 | AX-Ložisko | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 08 | O-kroužek | 1 | 24231205913 | $2.92 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Talířová pružina | 1 | 24231206824 | $12.63 | Shop at ECS Tuning | |||||
| 10 | Pružná lamela | 2 | 24231205919 | $9.60 | Shop at ECS Tuning | |||||
| 11 | Vnější lamela | 4 | 24231218784 | $5.96 | Shop at ECS Tuning | |||||
| 12 | Polepová lamela | 5 | 24239059361 | $11.95 | Shop at ECS Tuning | |||||
| 13 | Lamelový držák | 1 | 24231421551 | $96.46 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Lamelový držák | 1 | 24231205925 | $85.10 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Vstupní hřídel | 1 | 24211205906 | $227.66 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Opěrná podložka | 1 | 24231205924 | $1.27 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Opěrná podložka | 1 | 24231205923 | $1.91 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | O-kroužek | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 19 | Rozpěrný kroužek | 1 | 24231217134 | $1.33 | UKONČENO | Shop at ECS Tuning | ||||
| 20 | AX-Ložisko | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
