Převodovka montážní díly/uchycení for BMW 5 Series E34 525i (1995)

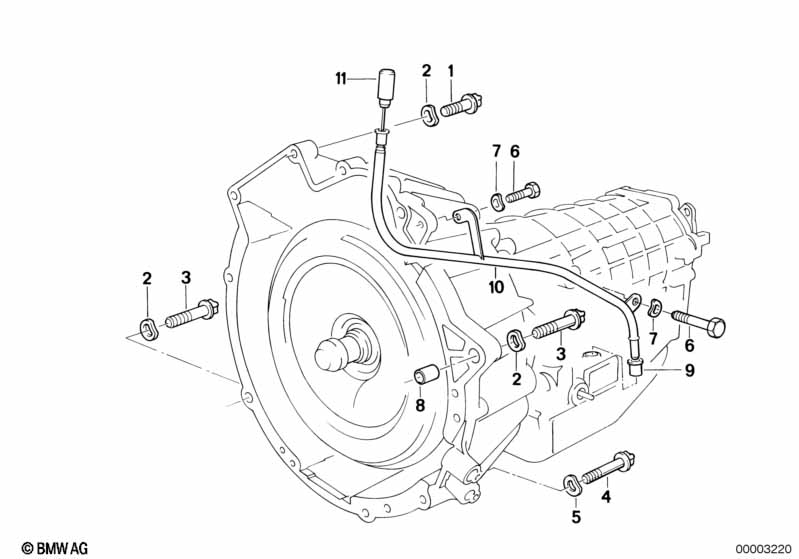

This Převodovka montážní díly/uchycení technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A4S 310R A5S 310Z |
|||||||||
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 01 | Šroub Torx | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Podložka | 12-200 HV-ZNS3 | 4 | 07119906063 | Shop at ECS Tuning | |||||
| 03 | Šroub Torx | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 04 | ASA-Šroub | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub | M6X16-8.8-ZNS | 2 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Lícovaná objímka | D=14,5/11,0MM | 2 | 24411200459 | $13.83 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Převlečná matice | 1 | 09/1990 | 24111205649 | $5.61 | Shop at ECS Tuning | ||||
| 10 | Olejová plnicí trubka | 1 | 09/1990 | 24111218793 | Shop at ECS Tuning | |||||
| 11 | Olejová měrka | 1 | 09/1990 | 24111218383 | $17.25 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
