Zavěšení převodovky for BMW 5 Series E34 525i (1995)

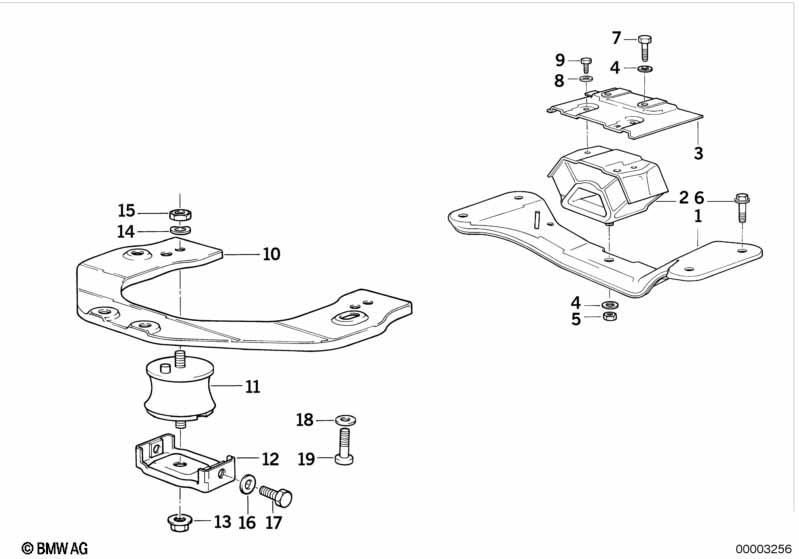

This Zavěšení převodovky technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A5S 300J | |||||||||
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 01 | Příčný držák | 1 | 24701139602 | $67.04 | Shop at ECS Tuning | |||||
| 02 | Pryžové ložisko | 1 | 24701139601 | $78.73 | Shop at ECS Tuning | |||||
| 03 | Adaptér | 1 | 24701139603 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Podložka | A10,5 | 1 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub s podložkou | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 07 | Šroub s válcovou hlavou | M10X20-8.8-ZNS | 2 | 07119901039 | $1.04 | Shop at ECS Tuning | ||||
| 10 | Nosný plech | 1 | 24701138520 | $25.95 | Shop at ECS Tuning | |||||
| 11 | Pryžové ložisko | 2 | 24701138435 | $23.87 | Shop at ECS Tuning | |||||
| 12 | Konzola uložení | 2 | 24701141633 | $7.05 | Shop at ECS Tuning | |||||
| 13 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 16 | Podložka | A8,4 | 4 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 17 | Šestihranný šroub | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Podložka | 8,4 | 4 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 19 | Šroub s válcovou hlavou | M8X20-8.8 ZN | 4 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Zavěšení převodovky?
- This technical diagram illustrates the Zavěšení převodovky within the Převodovka automatická group for the 5 Series E34 525i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Příčný držák (Part #24701139602).
- Which models use the hardware listed in this Zavěšení převodovky?
- The hardware and components featured in the Zavěšení převodovky are specific to the 5 Series E34 525i produced during 1995. These technical specifications ensure that parts like the Příčný držák (24701139602) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zavěšení převodovky assembly?
- Each item in the Zavěšení převodovky corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Příčný držák by locating its position on the schematic, which then links to the official BMW part number 24701139602 for the Převodovka automatická section.
