A5S560Z Skříň převodovky for BMW 7 Series E38 740i (2001)

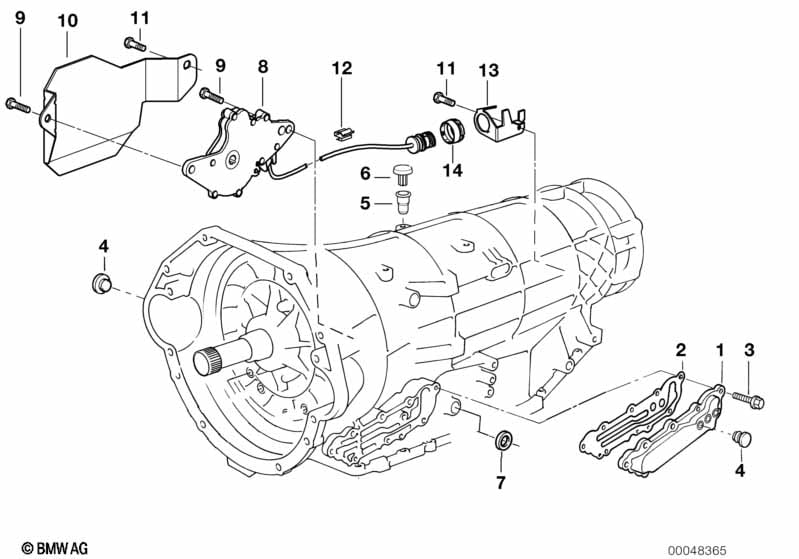

This A5S560Z Skříň převodovky technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Víko | 1 | 24101421877 | $98.87 | Shop at ECS Tuning | |||||
| 02 | Těsnění bez azbestu | 1 | 24101421138 | $7.70 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub | M6X20 | 9 | 24105A67389 | Shop at ECS Tuning | |||||
| 04 | Šroubový uzávěr s těsnicím kroužkem | M10X1 | 2 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 05 | Odvzdušňovací potrubí | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Větrací víko | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| 06 | Větrací víko | 1 | 24101422142 | $1.95 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Odvzdušňovací potrubí | 1 | 24101422141 | $5.93 | Shop at ECS Tuning | |||||
| 07 | Hřídelový těsnicí kroužek | 10X18X5 | 2 | 24147571213 | $5.20 | Shop at ECS Tuning | ||||
| 08 | Polohovací spínač | 1 | 24101421794 | $510.93 | +core | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M6X20 | 2 | 24105A67389 | Shop at ECS Tuning | |||||
| 10 | Krycí plech | 1 | 24101422153 | $11.05 | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub | M6X15 | 2 | 24101422154 | $2.37 | Shop at ECS Tuning | ||||
| 12 | Kabelová svorka | 1 | 24101422451 | $1.87 | Shop at ECS Tuning | |||||
| 13 | Držák | 1 | 24101421796 | $7.80 | Shop at ECS Tuning | |||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
