ZF 4HP22/24-EH řazení/parkovací západka for BMW 7 Series E32 750iL (1993)

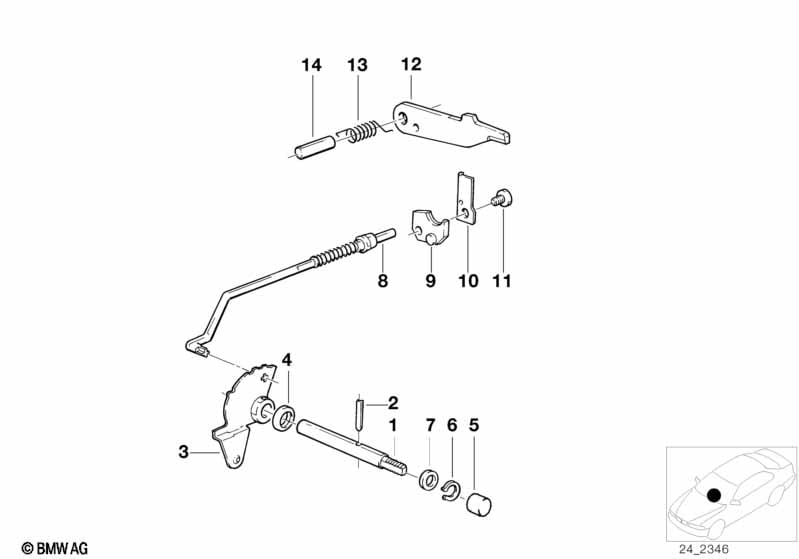

This ZF 4HP22/24-EH řazení/parkovací západka technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hřídel voliče | 1 | 24521218786 | $74.51 | Shop at ECS Tuning | |||||
| 02 | Pružný kolík | 5X20 | 1 | 07119941378 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Aretační kotouč | 1 | 24521421389 | $33.38 | Shop at ECS Tuning | |||||
| 05 | Uzavírací víko | 1 | 24521217149 | $3.27 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Pojistný kroužek | 1 | 24521217148 | $0.39 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Vymezovací podložka | 1 | 24521217147 | $0.39 | Shop at ECS Tuning | |||||
| 08 | Spojovací tyč | 1 | 24341218600 | $26.03 | Shop at ECS Tuning | |||||
| 09 | Vodicí deska | 1 | 24341215474 | $4.39 | Shop at ECS Tuning | |||||
| 10 | Vedení | 1 | 24341215475 | $0.61 | Shop at ECS Tuning | |||||
| 11 | Šroub s válcovou hlavou | M6X20 | 1 | 24531215476 | $1.75 | Shop at ECS Tuning | ||||
| 12 | Západka | 1 | 24341215470 | $35.97 | Shop at ECS Tuning | |||||
| 13 | Torzní pružina | 1 | 24341215471 | $2.32 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Čep | 1 | 24341219063 | $3.38 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
