Automatická převodovka for BMW 7 Series E23 732i (1982)

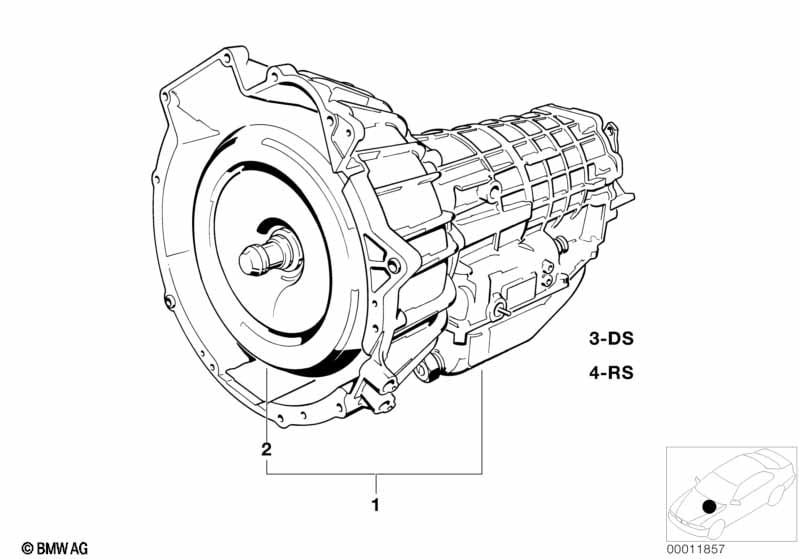

This Automatická převodovka technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN automatická převodovka | 4HP22-WG | 1 | 09/1982 | 24001216092 | $3906.00 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Měnič točivého momentu | R2 | 1 | 24411215667 | $1283.40 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Sada těsnění automatická převodovka „Af“ | 4HP22 | 1 | 24001215579 | $213.66 | Shop at ECS Tuning | ||||
| 04 | Opravná sada axiální ložisko | 1 | 24001215582 | $182.81 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Automatická převodovka?
- This technical diagram illustrates the Automatická převodovka within the Převodovka automatická group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN automatická převodovka (Part #24001216092).
- Which models use the hardware listed in this Automatická převodovka?
- The hardware and components featured in the Automatická převodovka are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the RP REMAN automatická převodovka (24001216092) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatická převodovka assembly?
- Each item in the Automatická převodovka corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the RP REMAN automatická převodovka by locating its position on the schematic, which then links to the official BMW part number 24001216092 for the Převodovka automatická section.
