ZF 3HP12 montážní díly/zavěšení for BMW 1502-2002tii 2002 (1974)

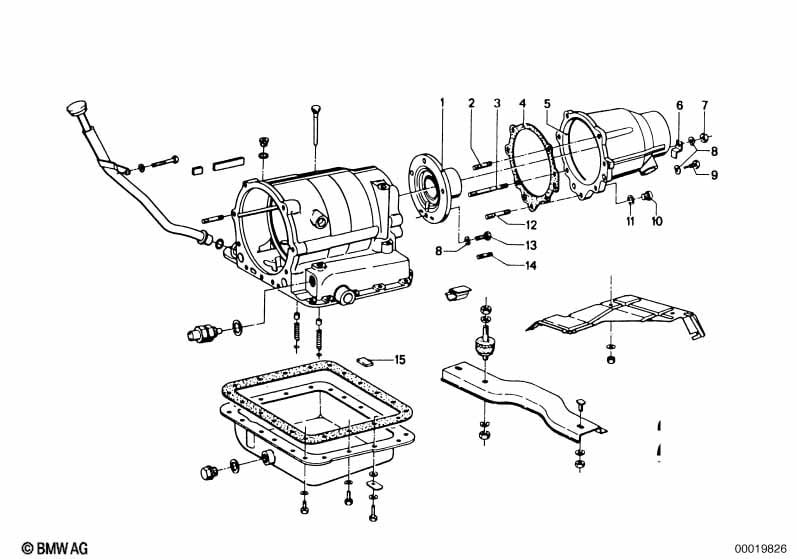

This ZF 3HP12 montážní díly/zavěšení technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema P-R-0-A-2-1 | |||||||||
| 01 | Příruba regulátoru | 1 | 24211202617 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Závrtný šroub | M8X25 | 4 | 07129903327 | $4.60 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Závrtný šroub | M8X85 | 1 | 07119908358 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Těsnění bez azbestu | 1 | 24111630280 | $5.23 | Shop at ECS Tuning | |||||
| 05 | Prodloužení převodovky | 1 | 24111201088 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Krycí plech | 1 | 24111200423 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Pružná podložka | 8,4X15-ZNS3 | 9 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 10 | Šroubový uzávěr | M10X1-ST-ZNS3 | 2 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 11 | Těsnicí kroužek | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Závrtný šroub | M8X30-ZNS3 | 12 | 07129906148 | $0.80 | Shop at ECS Tuning | ||||
| 13 | Šestihranný šroub | M8X18-8.8-ZNS3 | 3 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Závrtný šroub M8x18-5.6 | 0000000000 | 3 | 07119903900 | $0.17 | UKONČENO | Shop at ECS Tuning | |||
| 15 | Magnet | 1 | 24111206468 | $4.62 | Shop at ECS Tuning | |||||
