Řadicí páka for BMW 1502-2002tii 2002 (1974)

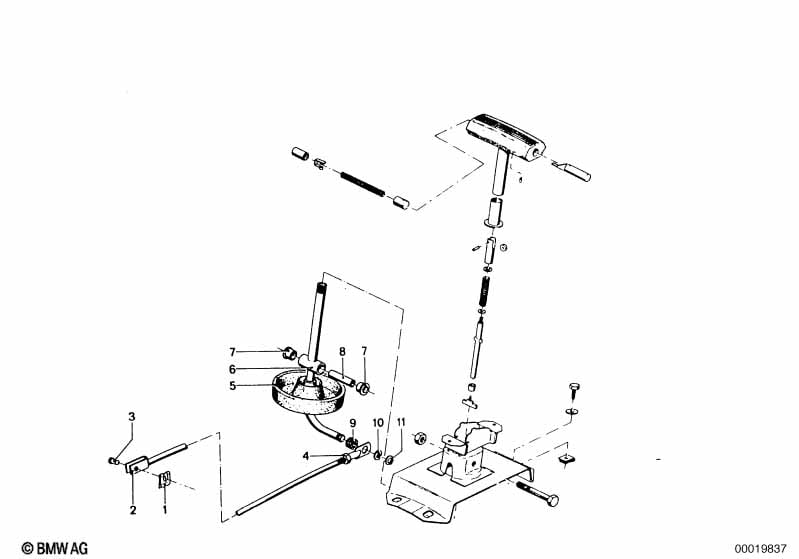

This Řadicí páka technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema P-R-0-A-2-1 | |||||||||
| 01 | Svorka | A6 | 1 | 07129934910 | $0.66 | Shop at ECS Tuning | ||||
| 02 | Tyč řazení | 1 | 08/1973 | 07/1976 | 25161204318 | Shop at ECS Tuning | ||||
| 03 | Čep | A6X12X8,8-ZN | 1 | 07129940707 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Vlnovec | 1 | 04/1971 | 07/1976 | 25161204088 | $43.52 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Řadicí páka | 1 | 04/1971 | 07/1976 | 25161204075 | $122.77 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Pouzdro | 2 | 24511666318 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Trubka | 1 | 24511666319 | $6.54 | Shop at ECS Tuning | |||||
| 09 | Vymezovací podložka | 4,800MM | 1 | 08/1973 | 07/1976 | 25161205680 | $8.05 | UKONČENO | Shop at ECS Tuning | |
| 10 | Pojistná podložka | 8,0 | 1 | 07119932863 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Pojistný kroužek | 10X1,2 | 1 | 25161204562 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Řadicí páka?
- This technical diagram illustrates the Řadicí páka within the Převodovka automatická group for the 1502-2002tii 2002 produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Svorka (Part #07129934910).
- Which models use the hardware listed in this Řadicí páka?
- The hardware and components featured in the Řadicí páka are specific to the 1502-2002tii 2002 produced during 1974. These technical specifications ensure that parts like the Svorka (07129934910) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Řadicí páka assembly?
- Each item in the Řadicí páka corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Svorka by locating its position on the schematic, which then links to the official BMW part number 07129934910 for the Převodovka automatická section.
