Řadicí páka for BMW 1502-2002tii 2002 (1971)

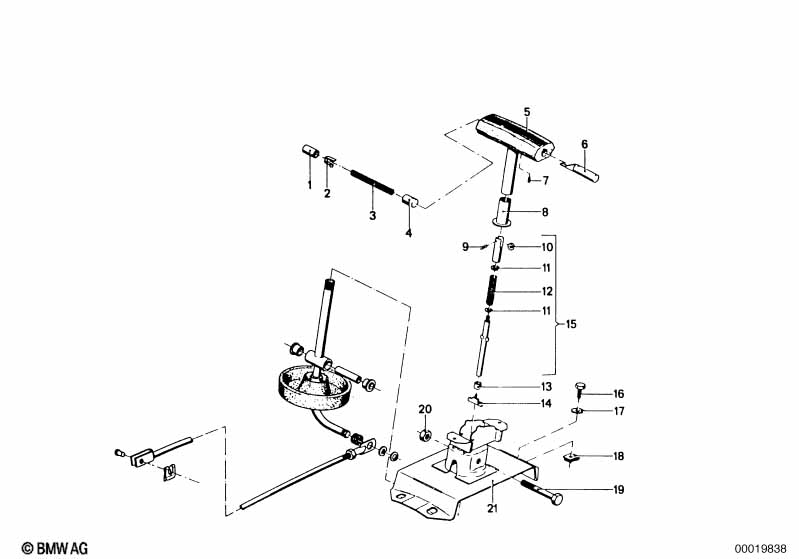

This Řadicí páka technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Knoflík | 1 | 25161200234 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Pružina | 1 | 25161200233 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Pružina | 1 | 25161200232 | $8.66 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Uchycení | 1 | 25161200130 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Rukojeť | 1 | 24511666346 | $87.33 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Tlačítko | 1 | 24511666350 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Šroub | M4X8 | 2 | 07119905104 | $1.84 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Matice | 1 | 24511666335 | $9.60 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Válcový kolík | 3X8 | 1 | 07119942161 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Váleček | 1 | 24511666330 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Podložka | 2 | 24511666332 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Pružina | 1 | 24511666325 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Pouzdro | 1 | 24511666338 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Uchycení | 1 | 24511666339 | $68.00 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Tyč řazení | 1 | 24511666323 | $62.10 | Shop at ECS Tuning | |||||
| 16 | Šestihranný šroub na plech | ST8X22-C | 3 | 07119916879 | $0.77 | Shop at ECS Tuning | ||||
| 17 | Podložka | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Lisovaná matice do otvoru | ST8-1 | 1 | 07129926117 | $0.24 | UKONČENO | Shop at ECS Tuning | |||
| 19 | Šestihranný šroub | M8X55-8.8 | 1 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 20 | Šestihranná matice samojisticí | M8 | 1 | 03/1987 | 07129922714 | $0.17 | UKONČENO | Shop at ECS Tuning | ||
| 20 | Šestihranná matice samojisticí | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 20 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 21 | Konzola uložení | 1 | 05/1969 | 08/1973 | 25161200113 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Řadicí páka?
- This technical diagram illustrates the Řadicí páka within the Převodovka automatická group for the 1502-2002tii 2002 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Knoflík (Part #25161200234).
- Which models use the hardware listed in this Řadicí páka?
- The hardware and components featured in the Řadicí páka are specific to the 1502-2002tii 2002 produced during 1971. These technical specifications ensure that parts like the Knoflík (25161200234) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Řadicí páka assembly?
- Each item in the Řadicí páka corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Knoflík by locating its position on the schematic, which then links to the official BMW part number 25161200234 for the Převodovka automatická section.
