Převodovka uchycení for BMW MINI R50 Cooper (2000)

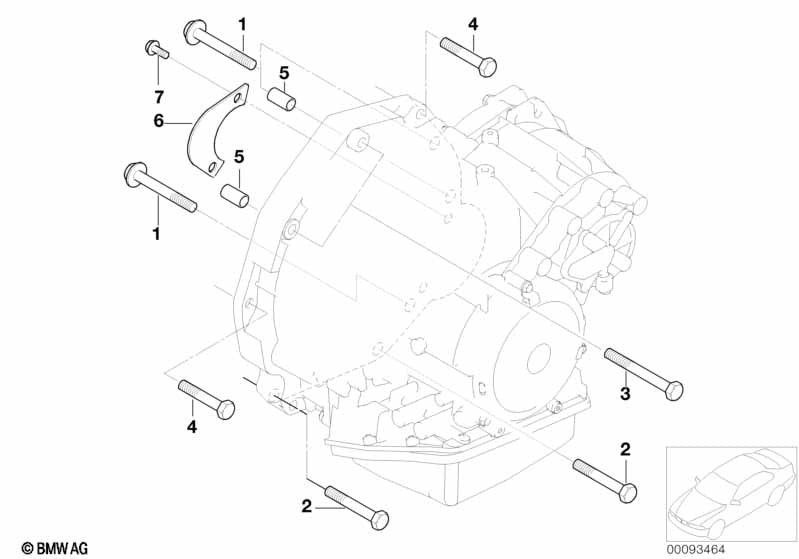

This Převodovka uchycení technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šestihranný šroub s přírubou | M12X65 | 3 | 07131172101 | $2.25 | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M12X60-8.8-ZNT | 2 | 07119905814 | $1.53 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M12X75-8.8-ZNT | 2 | 07119905815 | $1.64 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M12X50-8.8-ZNT | 2 | 07119905813 | $1.53 | Shop at ECS Tuning | ||||
| 05 | Lícovaná objímka | 2 | 07101485190 | $1.04 | Shop at ECS Tuning | |||||
| 06 | Krycí plech | 1 | 24007513345 | $6.42 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub | M6X16-U1-A2-70 | 1 | 07119905413 | $0.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Převodovka uchycení?
- This technical diagram illustrates the Převodovka uchycení within the Převodovka automatická group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Šestihranný šroub s přírubou (Part #07131172101).
- Which models use the hardware listed in this Převodovka uchycení?
- The hardware and components featured in the Převodovka uchycení are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Šestihranný šroub s přírubou (07131172101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Převodovka uchycení assembly?
- Each item in the Převodovka uchycení corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Šestihranný šroub s přírubou by locating its position on the schematic, which then links to the official BMW part number 07131172101 for the Převodovka automatická section.
