GACVT16Z součásti skříně/těsnění for BMW MINI R50 Cooper (2000)

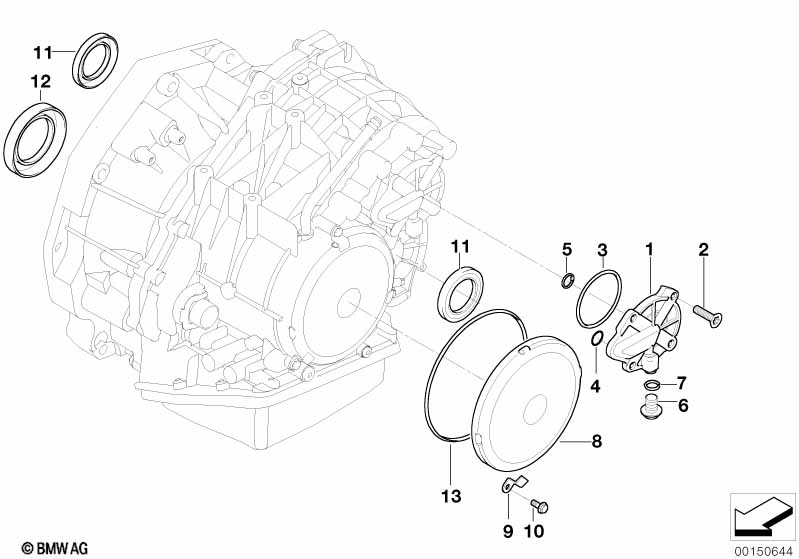

This GACVT16Z součásti skříně/těsnění technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uzavírací víko | 1 | 24117518743 | $100.24 | Shop at ECS Tuning | |||||
| 02 | Zápustný šroub | M6X20 | 4 | 24277520120 | $1.43 | Shop at ECS Tuning | ||||
| 03 | O-kroužek | 75,5X3,5 | 1 | 24277520146 | $5.36 | Shop at ECS Tuning | ||||
| 04 | O-kroužek | 17X2,5 | 1 | 24277518747 | $2.37 | Shop at ECS Tuning | ||||
| 05 | Těsnicí kroužek | 1 | 24277520147 | $13.90 | Shop at ECS Tuning | |||||
| 06 | Šroubový uzávěr | M10 | 1 | 24277573535 | $4.38 | Shop at ECS Tuning | ||||
| 07 | Těsnicí kroužek | 10X15 | 1 | 24277520148 | $0.33 | Shop at ECS Tuning | ||||
| 08 | Uzavírací víko | 1 | 24117573537 | $30.10 | Shop at ECS Tuning | |||||
| 09 | Svorka | 3 | 24277520145 | $4.68 | Shop at ECS Tuning | |||||
| 10 | Šestihranný šroub | M6X16 | 3 | 24277520118 | $2.82 | Shop at ECS Tuning | ||||
| 11 | Hřídelový těsnicí kroužek | 58X38X10 | 2 | 24217518704 | $17.60 | Shop at ECS Tuning | ||||
| 12 | Hřídelový těsnicí kroužek | 52X38X7 | 1 | 24217580322 | $30.28 | Shop at ECS Tuning | ||||
| 13 | O-kroužek | 176.1X2.6 | 1 | 24117542999 | $7.75 | Shop at ECS Tuning |
