GACVT16Z olejová vana/olejový filtr for BMW MINI R50 Cooper (2000)

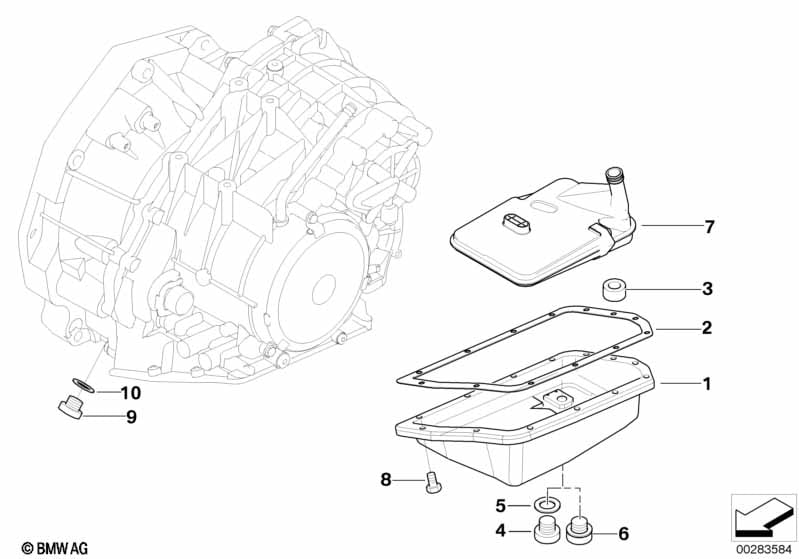

This GACVT16Z olejová vana/olejový filtr technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejová vana | M10 | 1 | 24117564341 | $80.38 | Shop at ECS Tuning | ||||
| 02 | Těsnění olejová vana | 1 | 24117518739 | $32.17 | Shop at ECS Tuning | |||||
| 03 | Magnet | 1 | 24117518740 | $6.19 | Shop at ECS Tuning | |||||
| Vhodné pouze pro olej.vany se závit.M18 | ||||||||||
| 04 | Šroubový uzávěr | M18 | 1 | 11/2005 | 24117518737 | $7.50 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Těsnicí kroužek | 18X24 | 1 | 11/2005 | 24117518738 | $0.69 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Šroubový uzávěr s těsnicím kroužkem | M10 | 1 | 11/2005 | 24117573539 | $8.40 | UKONČENO | Shop at ECS Tuning | ||
| pouze společně s | ||||||||||
| 06 | Šroubový uzávěr s těsnicím kroužkem | M10X1 | 1 | 11/2005 | 24117552351 | $4.60 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Olejová vana | M10 | 1 | 11/2005 | 24117564341 | $80.38 | Shop at ECS Tuning | |||
| Vhodné pouze pro olej.vany se závit.M10 | ||||||||||
| 06 | Šroubový uzávěr s těsnicím kroužkem | M10 | 1 | 11/2005 | 24117573539 | $8.40 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Šroubový uzávěr s těsnicím kroužkem | M10X1 | 1 | 11/2005 | 24117552351 | $4.60 | Shop at ECS Tuning | |||
| 07 | Olejový filtr | 1 | 24117518741 | $74.81 | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub | M6X16 | 13 | 24277520118 | $2.82 | Shop at ECS Tuning | ||||
| 09 | Šroubový uzávěr | M14 | 1 | 24117573534 | $6.63 | Shop at ECS Tuning | ||||
| 10 | Těsnicí kroužek | 14X18 | 1 | 24117518710 | $0.57 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
