GA6L45R Drive/Output for BMW 3 Series E91 LCI 325xi (2011)

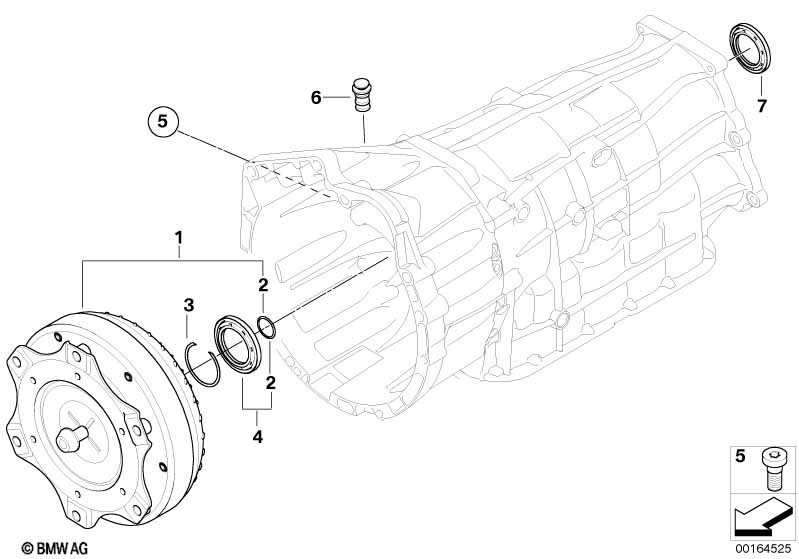

This GA6L45R Drive/Output technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Řízení typ převodovky |
S2TMA=Ano |
|||||||||
| 01 | Set, torque converter | R145TTD | 1 | 09/2010 | 24407596066 | $1922.80 | Shop at ECS Tuning | |||
| Sada obsahuje nový odvzdušňovač - dodržujte návod k opravě. |
||||||||||
| 02 | O-kroužek | 1 | 09/2010 | 24127572601 | $2.27 | Shop at ECS Tuning | ||||
| 03 | Rozpěrný kroužek | 1 | 09/2010 | 24127572599 | $2.47 | Shop at ECS Tuning | ||||
| 04 | Sada těsnicích kroužků měniče | 1 | 09/2010 | 24107581595 | $85.41 | Shop at ECS Tuning | ||||
| 05 | Šroubový uzávěr | 1 | 09/2010 | 24147572602 | $6.54 | Shop at ECS Tuning | ||||
| 06 | Zátka | 1 | 09/2010 | 24107572627 | $9.38 | Shop at ECS Tuning | ||||
| 07 | Hřídelový těsnicí kroužek | 43X70X11 | 1 | 09/2010 | 24137572626 | $48.89 | Shop at ECS Tuning | |||
