Převodovka uchycení/montážní díly for BMW 7 Series F02 760Li
This Převodovka uchycení/montážní díly technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 760Li. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

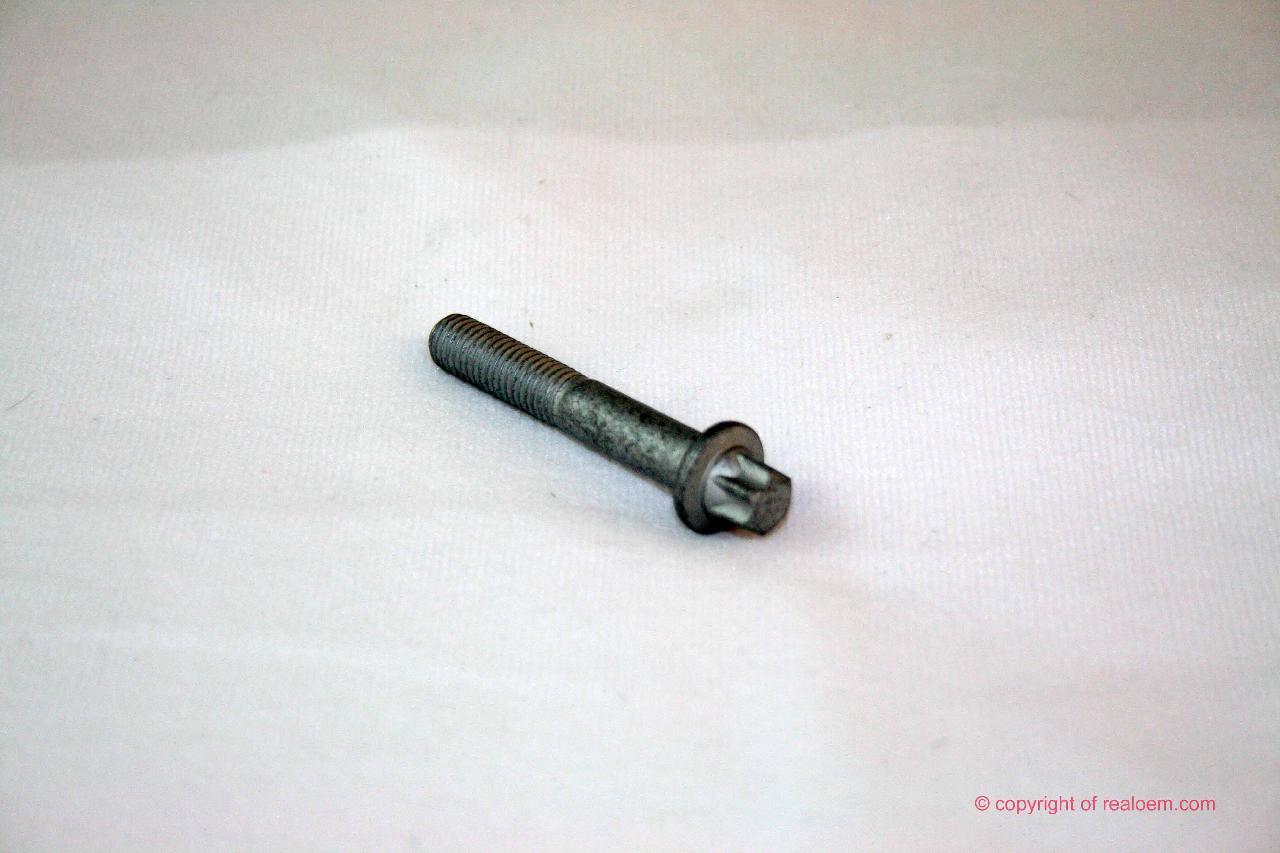

| 01 | ASA-Šroub | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Šroub Torx | M10X55-8.8 ZNS3 | 9 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Šroub Torx | M10X55-8.8 ZNS3 | 2 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Lícovaná objímka | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Uzavírací víčko | 1 | 24147600852 | Shop at ECS Tuning | ||||||
| 06 | Uzavírací víčko | 1 | 24147590118 | Shop at ECS Tuning | ||||||
| 07 | Snímač otáček kliková hřídel | 1 | 13627548995 | $65.38 | Shop at ECS Tuning | |||||
| 08 | Šroub s válc.hlavou s vnit.šestihranem | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning |
