GA8HP51Z pohon for BMW 5 Series G30 LCI 520i (2020)

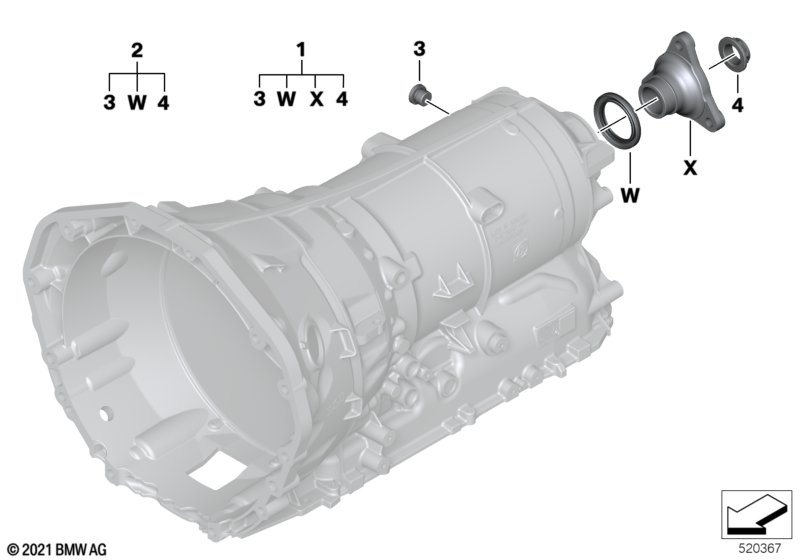

This GA8HP51Z pohon technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Heliový těsnicí kroužek jako náhradní díl |
||||||||||
| 01 | Opravná sada výstupní příruba | LK=96MM | 1 | 24008743412 | Shop at ECS Tuning | |||||
| 02 | Opravná sada výstup | 1 | 24008672629 | Shop at ECS Tuning | ||||||
| 03 | Šroubový uzávěr | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 04 | Matice s nákružkem | M27X1,5 | 1 | 24207588761 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 520i GA8HP51Z pohon?
- This technical diagram illustrates the GA8HP51Z pohon within the Převodovka automatická group for the 5 Series G30 LCI 520i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Opravná sada výstupní příruba (Part #24008743412).
- Which models use the hardware listed in this GA8HP51Z pohon?
- The hardware and components featured in the GA8HP51Z pohon are specific to the 5 Series G30 LCI 520i produced during 2020. These technical specifications ensure that parts like the Opravná sada výstupní příruba (24008743412) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP51Z pohon assembly?
- Each item in the GA8HP51Z pohon corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 520i, you can identify the Opravná sada výstupní příruba by locating its position on the schematic, which then links to the official BMW part number 24008743412 for the Převodovka automatická section.
