GA8HP51Z drobné díly for BMW 5 Series G30 LCI 520i (2020)

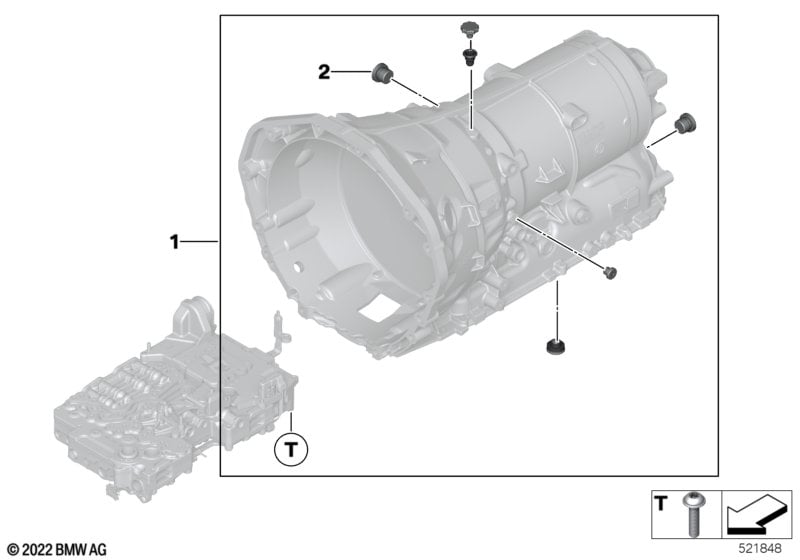

This GA8HP51Z drobné díly technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sada malých dílů | 1 | 11/2022 | 24147588896 | Shop at ECS Tuning | |||||
| 01 | Sada malých dílů automatické převodovky | 1 | 24145A13244 | Shop at ECS Tuning | ||||||
| 02 | Šroubový uzávěr | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 520i GA8HP51Z drobné díly?
- This technical diagram illustrates the GA8HP51Z drobné díly within the Převodovka automatická group for the 5 Series G30 LCI 520i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Sada malých dílů (Part #24147588896).
- Which models use the hardware listed in this GA8HP51Z drobné díly?
- The hardware and components featured in the GA8HP51Z drobné díly are specific to the 5 Series G30 LCI 520i produced during 2020. These technical specifications ensure that parts like the Sada malých dílů (24147588896) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP51Z drobné díly assembly?
- Each item in the GA8HP51Z drobné díly corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 520i, you can identify the Sada malých dílů by locating its position on the schematic, which then links to the official BMW part number 24147588896 for the Převodovka automatická section.
