GA8HP60 měnič toč.mom./těsnicí prvky for BMW 5 Series G60 Limuzína 520d (2025)

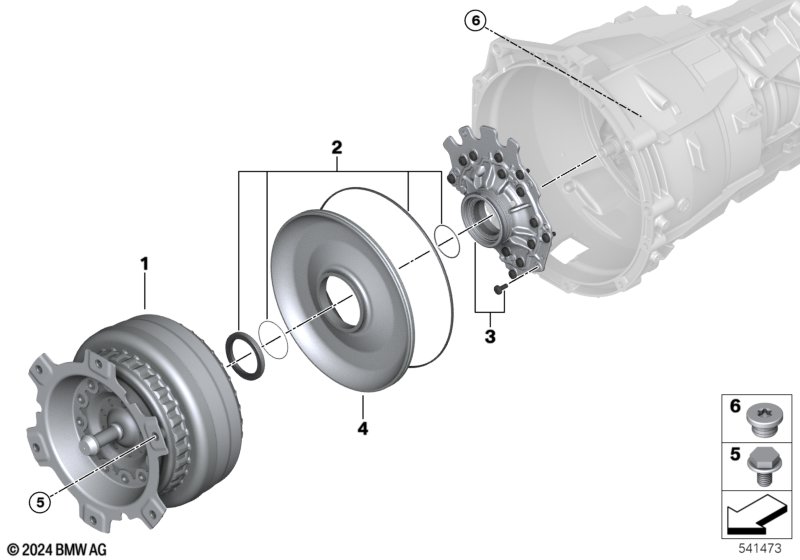

This GA8HP60 měnič toč.mom./těsnicí prvky technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Limuzína 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Opravná sada měnič točivého momentu | 1 | 24405B33AD9 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Šroubový uzávěr | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 02 | Sada těsn.kroužků měnič točiv.momentu | 1 | 24275A8B633 | Shop at ECS Tuning | ||||||
| 03 | Středicí deska | 1 | 24165A8B641 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Sada těsn.kroužků měnič točiv.momentu | 1 | 24275A8B633 | Shop at ECS Tuning | ||||||
| -- | Šroubový uzávěr | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 04 | Kryt ložiska | 1 | 24165A8B631 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Sada těsn.kroužků měnič točiv.momentu | 1 | 24275A8B633 | Shop at ECS Tuning | ||||||
| 05 | Šestihranný šroub | M10X17,5Z1-10.9 | 6 | 24407561393 | $1.68 | Shop at ECS Tuning | ||||
| 06 | Šroubový uzávěr s těsnicím kroužkem | M10X1 | 1 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Limuzína 520d GA8HP60 měnič toč.mom./těsnicí prvky?
- This technical diagram illustrates the GA8HP60 měnič toč.mom./těsnicí prvky within the Převodovka automatická group for the 5 Series G60 Limuzína 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Opravná sada měnič točivého momentu (Part #24405B33AD9).
- Which models use the hardware listed in this GA8HP60 měnič toč.mom./těsnicí prvky?
- The hardware and components featured in the GA8HP60 měnič toč.mom./těsnicí prvky are specific to the 5 Series G60 Limuzína 520d produced during 2025. These technical specifications ensure that parts like the Opravná sada měnič točivého momentu (24405B33AD9) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GA8HP60 měnič toč.mom./těsnicí prvky assembly?
- Each item in the GA8HP60 měnič toč.mom./těsnicí prvky corresponds to the numbered list below the illustration. For the 5 Series G60 Limuzína 520d, you can identify the Opravná sada měnič točivého momentu by locating its position on the schematic, which then links to the official BMW part number 24405B33AD9 for the Převodovka automatická section.
