Automatická převodovka GA8P80PH for BMW 5 Series G61 Touring 530e (2025)

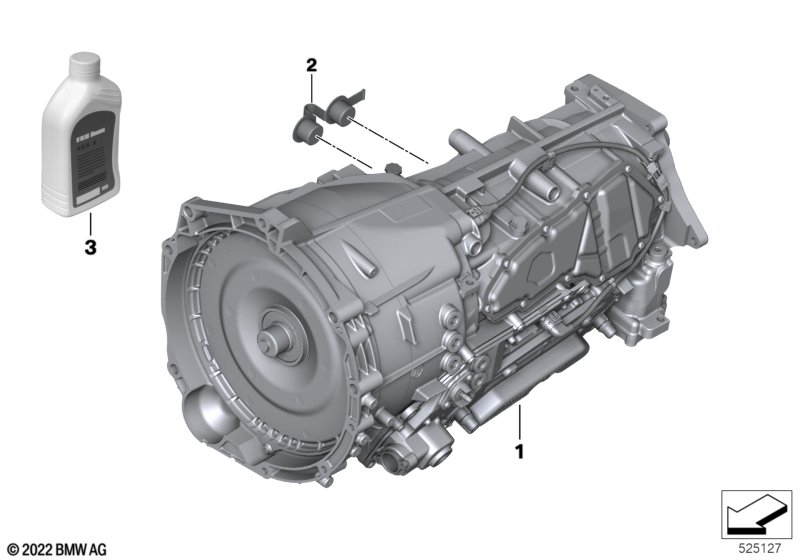

This Automatická převodovka GA8P80PH technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Automatická převodovka | 8P80PH | 1 | 24005B31F80 | Shop at ECS Tuning | |||||
| 02 | Zátka konektoru chladiče | 1 | 24105B38A29 | Shop at ECS Tuning | ||||||
| 03 | ATF 8 | 1L | X | 83225A28F03 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 530e Automatická převodovka GA8P80PH?
- This technical diagram illustrates the Automatická převodovka GA8P80PH within the Převodovka automatická group for the 5 Series G61 Touring 530e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Automatická převodovka (Part #24005B31F80).
- Which models use the hardware listed in this Automatická převodovka GA8P80PH?
- The hardware and components featured in the Automatická převodovka GA8P80PH are specific to the 5 Series G61 Touring 530e produced during 2025. These technical specifications ensure that parts like the Automatická převodovka (24005B31F80) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatická převodovka GA8P80PH assembly?
- Each item in the Automatická převodovka GA8P80PH corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 530e, you can identify the Automatická převodovka by locating its position on the schematic, which then links to the official BMW part number 24005B31F80 for the Převodovka automatická section.
