A5S360R/390R Výstup pohon všech kol for BMW 3 Series E46 325xi (2005)

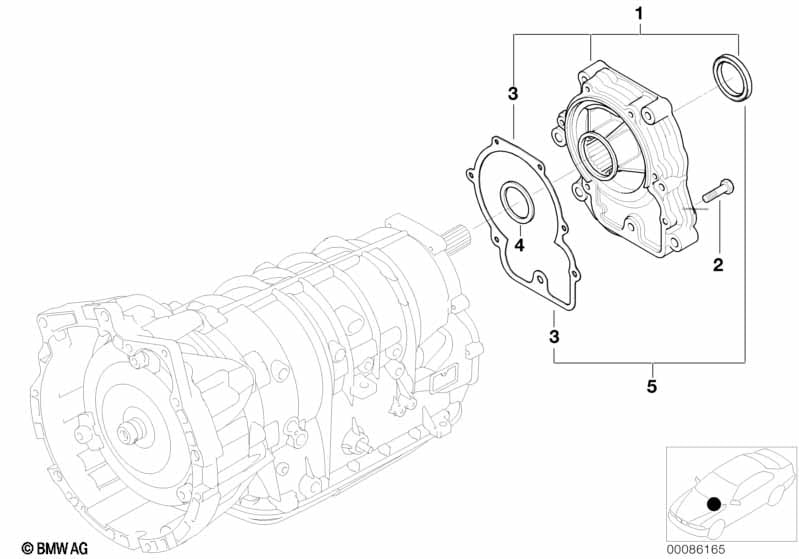

This A5S360R/390R Výstup pohon všech kol technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sada prodloužení převodovky | 1 | 03/2003 | 24117557065 | $399.57 | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M8X33 | 7 | 24137533717 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Sada těsnění prodloužení převodovky | 1 | 03/2003 | 24137557074 | $62.18 | Shop at ECS Tuning | ||||
| 04 | Sada vymezovací podložky | 1 | 24217509039 | $97.94 | Shop at ECS Tuning | |||||
| 05 | Sada těsnění výstupní hřídel | 1 | 24117557066 | $73.24 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi A5S360R/390R Výstup pohon všech kol?
- This technical diagram illustrates the A5S360R/390R Výstup pohon všech kol within the Převodovka automatická group for the 3 Series E46 325xi produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Sada prodloužení převodovky (Part #24117557065).
- Which models use the hardware listed in this A5S360R/390R Výstup pohon všech kol?
- The hardware and components featured in the A5S360R/390R Výstup pohon všech kol are specific to the 3 Series E46 325xi produced during 2005. These technical specifications ensure that parts like the Sada prodloužení převodovky (24117557065) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5S360R/390R Výstup pohon všech kol assembly?
- Each item in the A5S360R/390R Výstup pohon všech kol corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Sada prodloužení převodovky by locating its position on the schematic, which then links to the official BMW part number 24117557065 for the Převodovka automatická section.
