Hlavice řazení/kryty/plakety for BMW 7 Series E23 728i (1986)

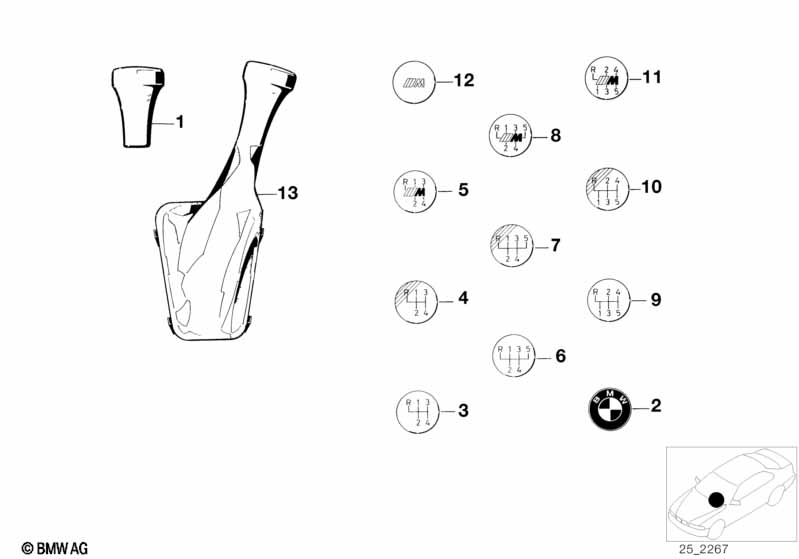

This Hlavice řazení/kryty/plakety technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hlavice řazení bez loga | 1 | 09/1981 | 25111220823 | $20.84 | Shop at ECS Tuning | ||||
| 01 | Hlavice řazení kůže bez loga | SCHWARZ | 1 | 09/1981 | 25111221284 | $55.50 | Shop at ECS Tuning | |||
| 01 | Hlavice řazení dřevo Bubinga | SEIDENMATT | 1 | 09/1981 | 25111221674 | $48.00 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Logo lepené | BMW | 1 | 09/1981 | 25111220956 | $7.50 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220953 | $8.02 | Shop at ECS Tuning | |||
| 04 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220953 | $8.02 | Shop at ECS Tuning | |||
| 05 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220953 | $8.02 | Shop at ECS Tuning | |||

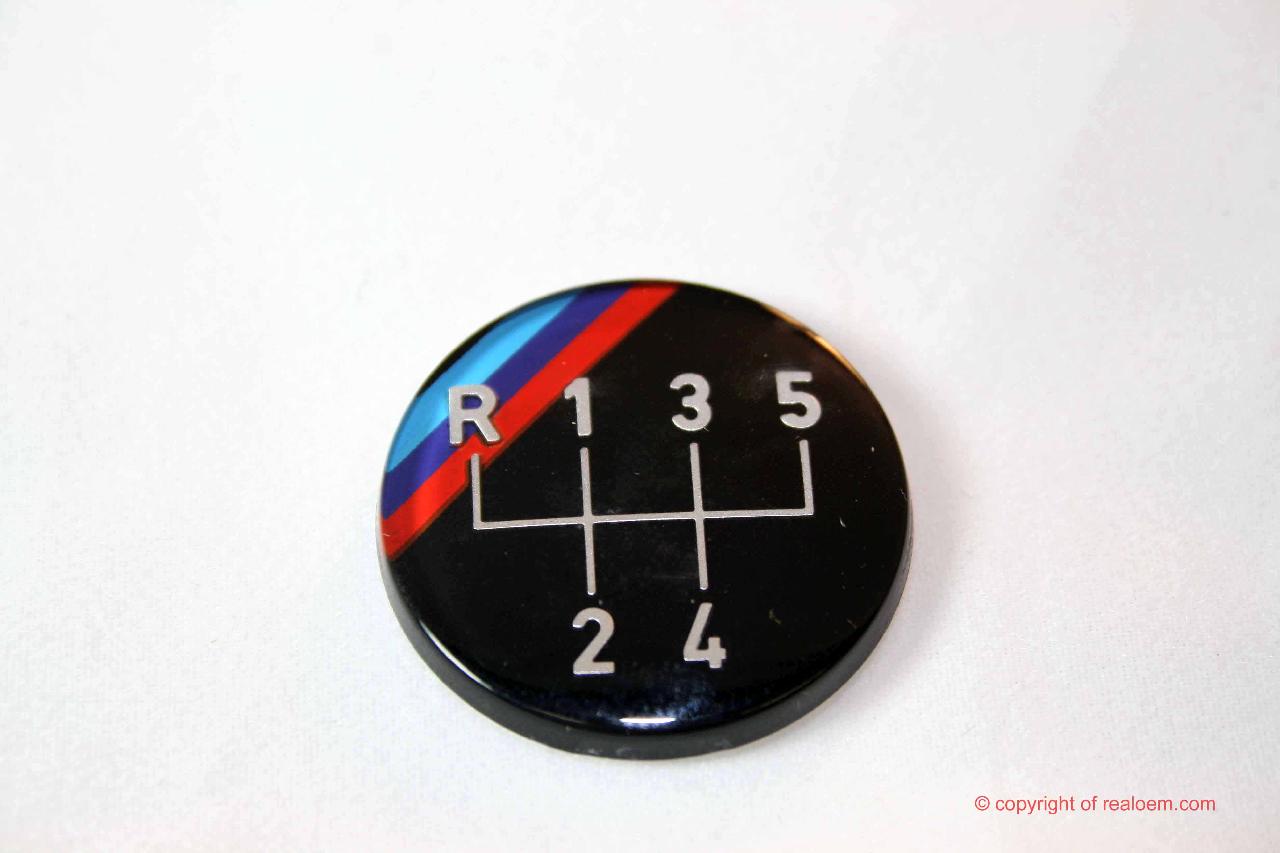

| 06 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220954 | $7.50 | Shop at ECS Tuning | |||
| 07 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220954 | $7.50 | Shop at ECS Tuning | |||
| 08 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220954 | $7.50 | Shop at ECS Tuning | |||
| 09 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220955 | $15.63 | Shop at ECS Tuning | |||
| 10 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220955 | $15.63 | Shop at ECS Tuning | |||
| 11 | Logo lepené | M TECHNIC | 1 | 09/1981 | 25111220955 | $15.63 | Shop at ECS Tuning | |||
| 12 | Logo lepené | M | 1 | 09/1981 | 25111220957 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Kryt řadicí páky kůže | SCHWARZ | 1 | 09/1981 | 25111221510 | $165.61 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
