Řazení Steptronic for BMW MINI Paceman R61 Cooper

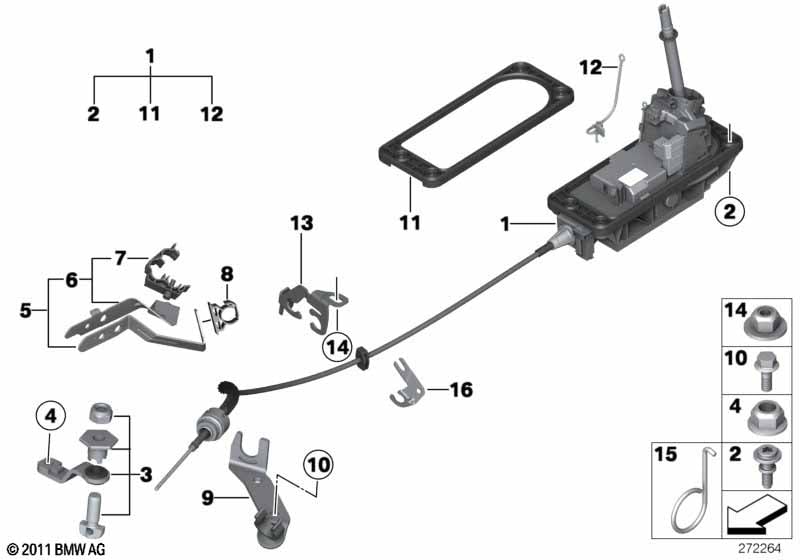

This Řazení Steptronic technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Automatická převodovka |
S205A=Ano |
|||||||||
| 01 | Řazení Steptronic | 1 | 25167644233 | Shop at ECS Tuning | ||||||
| Další zásah není možný | ||||||||||
| 02 | Upevňovací šroub | M6X21 | 4 | 25167568429 | $1.92 | Shop at ECS Tuning | ||||
| 03 | Volič | 1 | 24507571927 | $28.00 | +core | Shop at ECS Tuning | ||||
| 04 | Matice s nákružkem samojistící | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Opěrný úhelník | 1 | 24507566787 | $11.46 | Shop at ECS Tuning | |||||
| 06 | Držák palivové potrubí | 1 | 16122753627 | Shop at ECS Tuning | ||||||
| 07 | Dvojitá svorka | 1 | 13532754279 | Shop at ECS Tuning | ||||||
| 09 | Podpěra bovden | 1 | 24507524787 | $3.51 | Shop at ECS Tuning | |||||
| 10 | Šestihranný šroub | M8X20-8.8ZNS3 | 2 | 07119904401 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Těsnění | 1 | 25167570677 | $12.95 | Shop at ECS Tuning | |||||
| 12 | Nouzové odjištění | 1 | 25167577719 | $6.56 | Shop at ECS Tuning | |||||
| 13 | Držák ovládací bovden | 1 | 25119804708 | Shop at ECS Tuning | ||||||
| 14 | Šestihranná matice samojisticí | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| Pro vozidla s Automatická převodovka a Zvedák vozu |
S205A=Ano S5DDA=Ne |
|||||||||
| 15 | Stahovák krytu kola | 1 | 71111507294 | $0.89 | Shop at ECS Tuning | |||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
