Řazení Interlock automatická převodovka for BMW 3 Series E36 325i (1995)
This Řazení Interlock automatická převodovka technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Konzola řazení | INTERLOCK | 1 | 09/1996 | 25161422852 | $128.03 | Shop at ECS Tuning | |||
| Další zásah není možný | ||||||||||
| 02 | Táhlo | L=121MM | 1 | 09/1996 | 25161219755 | $8.90 | Shop at ECS Tuning | |||
| 03 | Šroub s válcovou hlavou | M4X8 | 1 | 09/1996 | 25161215780 | $0.55 | Shop at ECS Tuning | |||
| 04 | Šestihranný šroub na plech | ST6,3X38-C-Z1 | 3 | 07119916977 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Zvuková izolace | 1 | 25161421130 | $17.48 | Shop at ECS Tuning | |||||
| 06 | Prestol klec | ST6,3-ZNS | 3 | 07129901748 | $0.25 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Matice na plech | ST 6,3 - 9 | 3 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Magnet | 1 | 25161219600 | $67.84 | Shop at ECS Tuning | |||||
| 08 | Šroub s válcovou hlavou | M6X14 | 2 | 07119906475 | $1.54 | Shop at ECS Tuning | ||||
| 09 | Bovden Interlock | LHD | 1 | 32311161868 | $28.48 | Shop at ECS Tuning | ||||
| 10 | Držák bovden Interlock | 1 | 32311160323 | $2.70 | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub s podložkou | M6 | 1 | 32311160657 | $0.83 | Shop at ECS Tuning | ||||

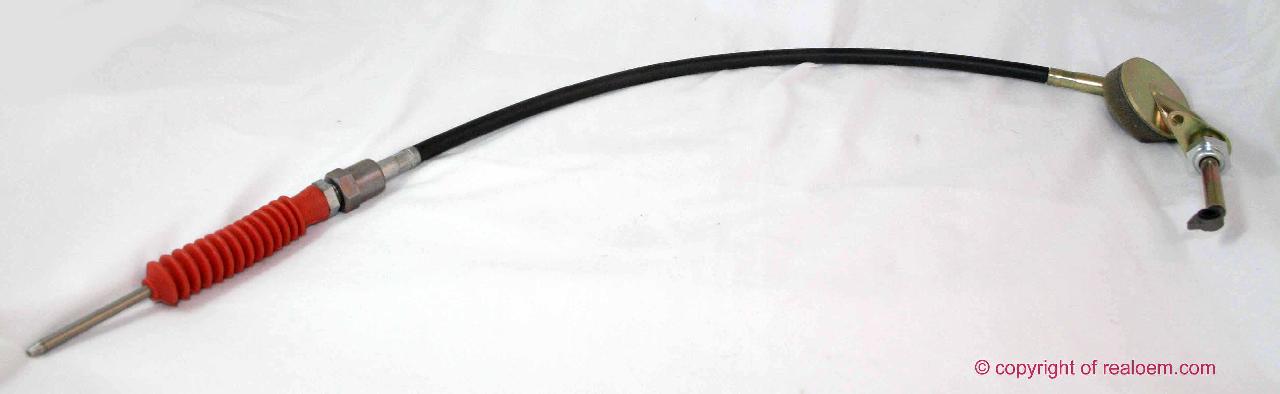

| 12 | Bovden tlumicí hluk | THM | 1 | 03/1994 | 25161423114 | $78.08 | Shop at ECS Tuning | |||
| 13 | Uchycení | 1 | 11157545772 | $1.04 | Shop at ECS Tuning | |||||
| 13 | Uchycení | 1 | 11157545772 | $1.04 | Shop at ECS Tuning | |||||
| 14 | Pojistná podložka | 1 | 25161421439 | $0.30 | Shop at ECS Tuning | |||||
| 15 | Volič | THM | 1 | 24511218233 | $10.32 | Shop at ECS Tuning | ||||
| 16 | Šestihranná matice samojisticí | M8X1 | 1 | 24517542700 | $0.27 | Shop at ECS Tuning | ||||
| 17 | Sada svorky | 1 | 24500429180 | $18.95 | Shop at ECS Tuning | |||||
| 18 | Opěrný úhelník | THM | 1 | 09/1996 | 24501421587 | $5.82 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Bovden tlumicí hluk | THM | 1 | 09/1996 | 25161423114 | $78.08 | Shop at ECS Tuning | |||
| 19 | Šestihranný šroub s podložkou | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
