Nosník přední nápravy-táhlo for BMW 5 Series E12 528 (1976)

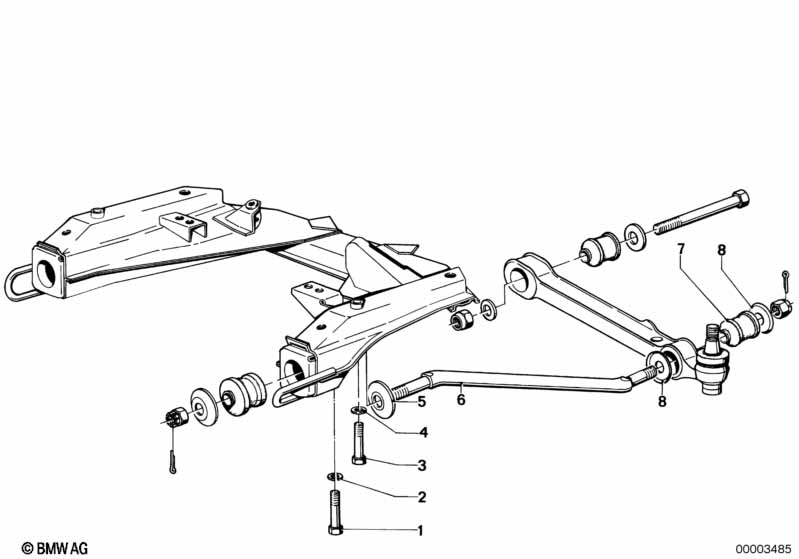

This Nosník přední nápravy-táhlo technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šestihranný šroub | M12X1,5X60 | 2 | 07119914643 | $2.68 | Shop at ECS Tuning | ||||
| 02 | Pružný kroužek | B12 | 2 | 07119933127 | $0.13 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M12X1,5X70 ZNS | 2 | 07119903156 | $1.64 | Shop at ECS Tuning | ||||
| 04 | Okno | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Podložka | 2 | 31121100626 | $1.40 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Táhlo | 2 | 31121112887 | $66.18 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Šestihranná matice samojisticí | M14X1,5-05 ZNS3 | 4 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 07 | Pryžové ložisko | 2 | 31122614103 | $13.06 | Shop at ECS Tuning | |||||
| 08 | Podložka | 4 | 31122614161 | $3.70 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
