Stabilizátor vpředu for BMW 3 Series E30 325ix (1991)

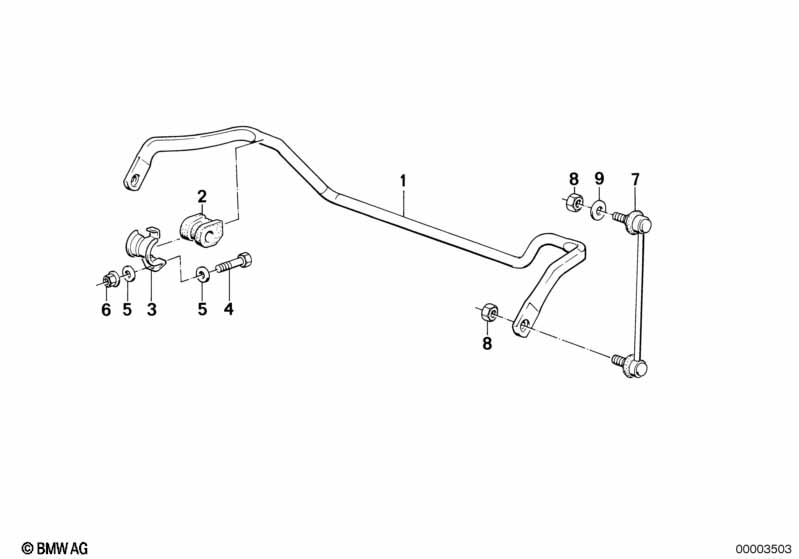

This Stabilizátor vpředu technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizátor vpředu | D=17MM | 1 | 31351132500 | $161.63 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Pryžové ložisko stabilizátor | D=17MM | 2 | 31351701127 | $13.67 | Shop at ECS Tuning | ||||
| 03 | Přídržná příložka | 2 | 31351701123 | $5.11 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Podložka | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | Šestihranná matice | M8-8-ZNS3 | 2 | 01/1993 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Vzpěra | 2 | 31351701066 | $49.63 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Šestihranná matice samojisticí | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Podložka | A10,5 | 2 | 31351128229 | $2.82 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
