Opěrné ložisko/pružná podložka/mont.díly for BMW 3 Series E21 315 (1983)

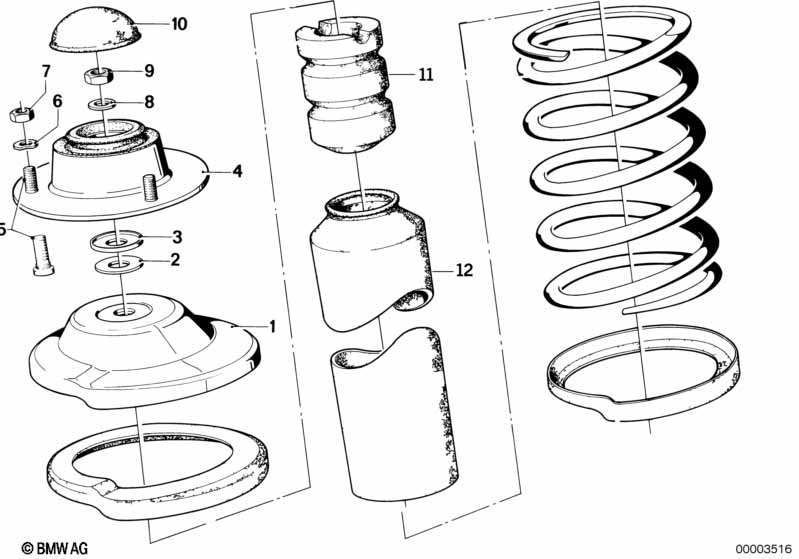

This Opěrné ložisko/pružná podložka/mont.díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sedlo pružiny horní | 2 | 08/1977 | 31331120592 | $16.85 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Podložka | 37X2,5MM ZNS3 | 2 | 08/1977 | 31336776760 | $0.87 | Shop at ECS Tuning | |||
| 03 | Ochranná manžeta proti prachu | 2 | 08/1977 | 31331110196 | $1.84 | Shop at ECS Tuning | ||||
| 04 | Opěrné ložisko | M8X18 | 2 | 08/1977 | 31331110195 | $91.76 | Shop at ECS Tuning | |||
| 05 | Čep | M8X18 ZNS3 | 6 | 08/1977 | 31336765744 | $1.17 | Shop at ECS Tuning | |||
| 06 | Pružná podložka | 8,4X15-ZNS3 | 6 | 08/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 07 | Šestihranná matice | M8-8-ZNNIV SI | 6 | 08/1977 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 08 | Podložka | 2 | 08/1977 | 31331118040 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Šestihranná matice samojisticí | M12X1.5-05 ZNS3 | 2 | 08/1977 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 10 | Sada prachovka | 2 | 08/1977 | 31331114722 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Tlumič | 2 | 08/1977 | 31331116098 | $17.82 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Ochranná trubka | 2 | 08/1977 | 31331116165 | $7.64 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
