Opěrné ložisko/pružná podložka/mont.díly for BMW 7 Series E23 728iS (1986)

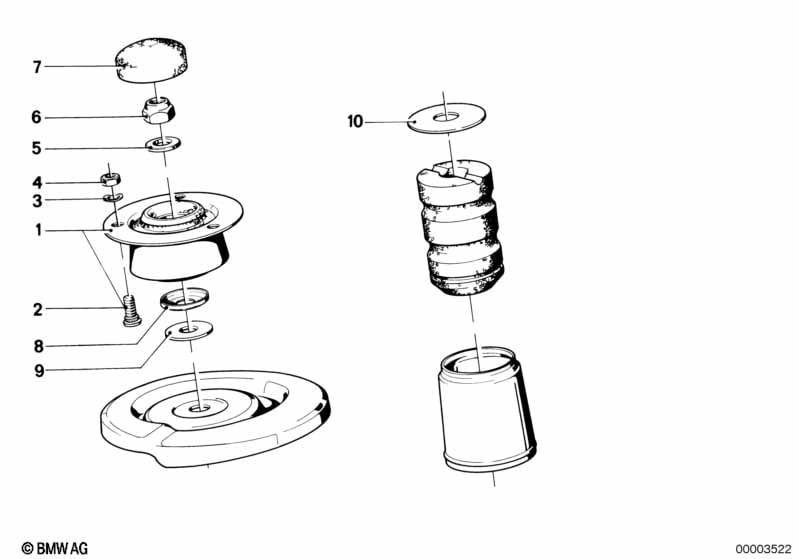

This Opěrné ložisko/pružná podložka/mont.díly technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Opěrné ložisko tvrdé bílé | 2 | 31331121551 | $121.70 | Shop at ECS Tuning | |||||
| 01 | Opěrné ložisko měkké | 2 | 31331121552 | $115.32 | Shop at ECS Tuning | |||||
| 02 | Čep | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 03 | Pružná podložka | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M8-8-ZNS3 | 6 | 05/1986 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Šestihranná matice | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Podložka | 2 | 31331110301 | $0.91 | Shop at ECS Tuning | |||||
| 06 | Šestihranná matice samojisticí | M18X1,5 | 2 | 07129922475 | $1.46 | Shop at ECS Tuning | ||||
| 07 | Uzavírací víčko | 2 | 31331119353 | $7.17 | Shop at ECS Tuning | |||||
| 08 | Těsnicí kroužek | 2 | 31331108927 | $2.50 | Shop at ECS Tuning | |||||
| 09 | Podložka | 2 | 31332750139 | $0.57 | Shop at ECS Tuning | |||||
| 10 | Podložka | 2 | 31331118694 | $1.93 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728iS Opěrné ložisko/pružná podložka/mont.díly?
- This technical diagram illustrates the Opěrné ložisko/pružná podložka/mont.díly within the Přední náprava group for the 7 Series E23 728iS produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Opěrné ložisko tvrdé bílé (Part #31331121551).
- Which models use the hardware listed in this Opěrné ložisko/pružná podložka/mont.díly?
- The hardware and components featured in the Opěrné ložisko/pružná podložka/mont.díly are specific to the 7 Series E23 728iS produced during 1986. These technical specifications ensure that parts like the Opěrné ložisko tvrdé bílé (31331121551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Opěrné ložisko/pružná podložka/mont.díly assembly?
- Each item in the Opěrné ložisko/pružná podložka/mont.díly corresponds to the numbered list below the illustration. For the 7 Series E23 728iS, you can identify the Opěrné ložisko tvrdé bílé by locating its position on the schematic, which then links to the official BMW part number 31331121551 for the Přední náprava section.
