Přední panel for BMW R45-R65LS..78-85 R65LS (1983)

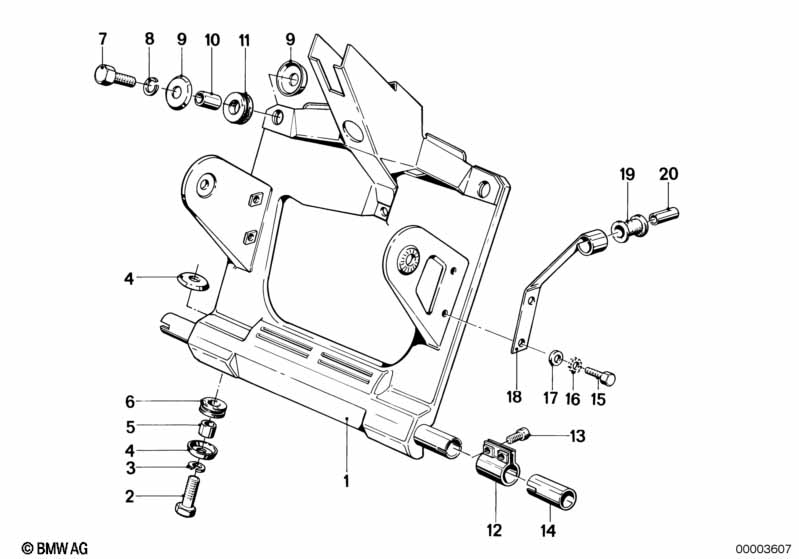

This Přední panel technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přední panel | 1 | 31421241870 | $112.49 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | M6X20-8.8-ZNS | 2 | 07119913016 | $0.60 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Pružná podložka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Víčko | 4 | 31421236244 | $0.54 | Shop at ECS Tuning | |||||
| 05 | Pouzdro | 2 | 31421236241 | $0.92 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Pryžová průchodka | 2 | 07147267586 | Shop at ECS Tuning | ||||||
| 07 | Šestihranný šroub | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Pružná podložka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Víčko | 4 | 31421232243 | $1.96 | Shop at ECS Tuning | |||||
| 10 | Pouzdro | 2 | 31421236243 | $1.33 | Shop at ECS Tuning | |||||
| 11 | Pryžová průchodka | 2 | 31421236242 | $2.80 | Shop at ECS Tuning | |||||
| 12 | Spona | 2 | 31421241969 | $6.91 | Shop at ECS Tuning | |||||
| 14 | Trubka | 2 | 31421241912 | $2.20 | Shop at ECS Tuning | |||||
| 15 | Šestihranný šroub | M5X12-8.8 ZN | 4 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 16 | Ozubená podložka | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Podložka | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 18 | Uchycení | 2 | 31421241869 | $3.93 | Shop at ECS Tuning | |||||
| 19 | Hrdlo | 2 | 31421242398 | $0.70 | Shop at ECS Tuning | |||||
| 20 | Pouzdro | 2 | 31421242399 | $0.85 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
