Stabilizátor vpředu for BMW MINI R50 Cooper (2000)

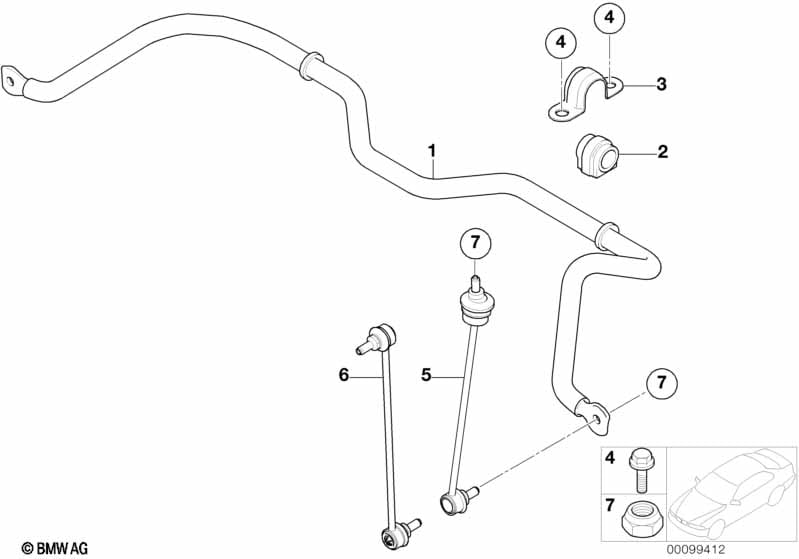

This Stabilizátor vpředu technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Náhrad. díly platí také pro John Cooper Works s výjimkou zvláštních součástek John Cooper Works. další informace viz HG31 FG10 |
|||||||||
| 01 | Stabilizátor vpředu | D=22,5MM | 1 | 31356757072 | $107.87 | Shop at ECS Tuning | ||||
| Pro vozidla s Naladění sportovního podvozku Plus |
S228A=Ano |
|||||||||
| 01 | Stabilizátor vpředu | D=24MM | 1 | 31356758301 | $107.87 | Shop at ECS Tuning | ||||
| 02 | Pryžové ložisko stabilizátor | D=22,5MM | 2 | 31356757146 | $8.93 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Montážní pomůcka | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| Pro vozidla s Naladění sportovního podvozku Plus |
S228A=Ano |
|||||||||
| 02 | Pryžové ložisko stabilizátor | D=24MM | 2 | 31356758302 | $8.93 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Montážní pomůcka | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Spona stabilizátor | 2 | 31356778827 | $10.93 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub s přírubou | M14X1,5X80 | 4 | 06/2001 | 31116756348 | $2.97 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Kyvná vzpěra | 2 | 03/2002 | 31351507989 | $45.40 | +core | Shop at ECS Tuning | |||
| 07 | Šestihranná matice s podložkou | M10 ZNS3 | 4 | 10/2007 | 31356757707 | $1.00 | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Stabilizátor vpředu?
- This technical diagram illustrates the Stabilizátor vpředu within the Přední náprava group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizátor vpředu (Part #31356757072).
- Which models use the hardware listed in this Stabilizátor vpředu?
- The hardware and components featured in the Stabilizátor vpředu are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Stabilizátor vpředu (31356757072) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizátor vpředu assembly?
- Each item in the Stabilizátor vpředu corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Stabilizátor vpředu by locating its position on the schematic, which then links to the official BMW part number 31356757072 for the Přední náprava section.
