Opěrné ložisko/pružná podložka/mont.díly for BMW MINI R50 Cooper (2000)

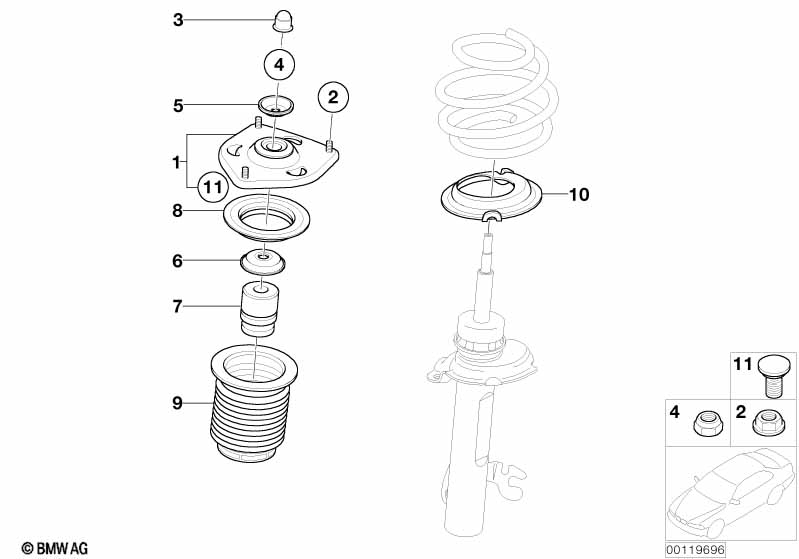

This Opěrné ložisko/pružná podložka/mont.díly technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Opěrné ložisko | 2 | 03/2002 | 31306758309 | $125.53 | Shop at ECS Tuning | ||||
| 02 | Matice s nákružkem samojistící | M8-8 ZNS3 | 6 | 03/2002 | 31316769731 | $0.38 | Shop at ECS Tuning | |||
| 03 | Ochranné víčko | 2 | 03/2002 | 31306758763 | $0.79 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice samojisticí | M12X1.5-05 ZNS3 | 2 | 03/2002 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 05 | Kloubní talíř | 2 | 03/2002 | 31336756806 | $3.08 | Shop at ECS Tuning | ||||
| 06 | Opěrný kotouč | 2 | 03/2002 | 31321511413 | $2.86 | Shop at ECS Tuning | ||||
| 07 | Přídavná pružina přední | L=54MM | 2 | 03/2002 | 31336756663 | $18.75 | Shop at ECS Tuning | |||
| 08 | Sedlo pružiny horní | 2 | 03/2002 | 31301507220 | $7.83 | Shop at ECS Tuning | ||||
| 09 | Pružná podložka s ochran. trubkou horní | 2 | 03/2002 | 31316754969 | $7.83 | Shop at ECS Tuning | ||||
| 10 | Pružná podložka dolní | 2 | 03/2002 | 31306759242 | $3.15 | Shop at ECS Tuning | ||||
| 11 | Čep | M8X16-10.9 ZNS3 | 6 | 03/2002 | 31306778829 | $12.50 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Opěrné ložisko/pružná podložka/mont.díly?
- This technical diagram illustrates the Opěrné ložisko/pružná podložka/mont.díly within the Přední náprava group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Opěrné ložisko (Part #31306758309).
- Which models use the hardware listed in this Opěrné ložisko/pružná podložka/mont.díly?
- The hardware and components featured in the Opěrné ložisko/pružná podložka/mont.díly are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Opěrné ložisko (31306758309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Opěrné ložisko/pružná podložka/mont.díly assembly?
- Each item in the Opěrné ložisko/pružná podložka/mont.díly corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Opěrné ložisko by locating its position on the schematic, which then links to the official BMW part number 31306758309 for the Přední náprava section.
