Olejový zásobník/jednotlivé díly for BMW 5 Series E34 530i (1995)

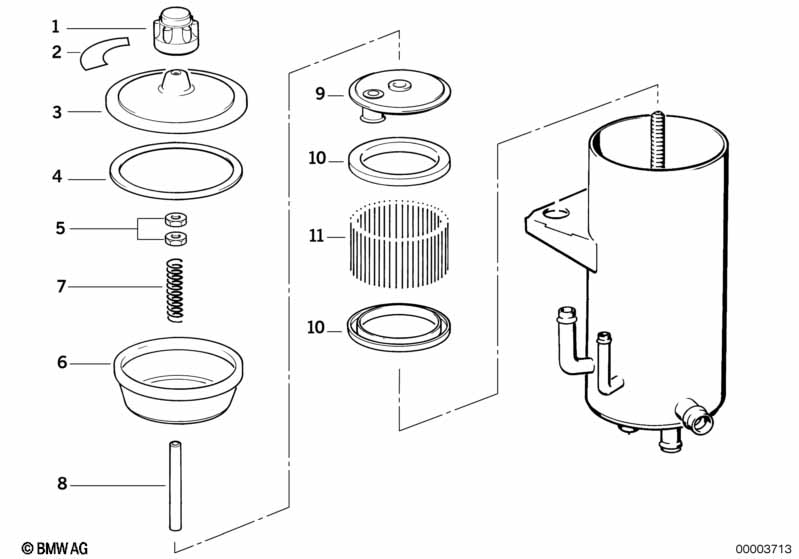

This Olejový zásobník/jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

Olejový zásobník/jednotlivé díly
Č. Popis Doplnění Poč.  Od   Do  Číslo dílu Cena Notes
  i Jednotlivé díly pro
vhodné pouze pro
-- Olejový zásobník ZF X 32411139574 Shop at ECS Tuning
01 Uzavírací víčko 1 32411141132 $16.36 Shop at ECS Tuning
02 Víko 1 32411140507 UKONČENO Shop at ECS Tuning
03 Těsnění 1 32411128929 $5.07 Shop at ECS Tuning
04 Šestihranná matice M6-04-2-ZN 2 07119921054 $0.11 Shop at ECS Tuning
05 Tlačná pružina 1 32411140954 UKONČENO Shop at ECS Tuning
06 Olejové síto 1 32411128928 $31.58 Shop at ECS Tuning
07 Distanční trubka 1 32411140953 UKONČENO Shop at ECS Tuning
08 Přetlakový ventil 1 32411140816 $20.03 Shop at ECS Tuning
09 Pryžové těsnění 2 32411137778 $3.90 Shop at ECS Tuning
10 Vložka filtru 1 32411128167 $14.57 UKONČENO Shop at ECS Tuning
Notes
  • Ukončeno = Díl se již nevyrábí.

See Also

Frequently Asked Questions

What assembly is shown in the BMW 5 Series E34 530i Olejový zásobník/jednotlivé díly?
This technical diagram illustrates the Olejový zásobník/jednotlivé díly within the Řízení group for the 5 Series E34 530i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Olejový zásobník (Part #32411139574).
Which models use the hardware listed in this Olejový zásobník/jednotlivé díly?
The hardware and components featured in the Olejový zásobník/jednotlivé díly are specific to the 5 Series E34 530i produced during 1995. These technical specifications ensure that parts like the Olejový zásobník (32411139574) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Olejový zásobník/jednotlivé díly assembly?
Each item in the Olejový zásobník/jednotlivé díly corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Olejový zásobník by locating its position on the schematic, which then links to the official BMW part number 32411139574 for the Řízení section.
