Sloupek řízení-pažnice/výplň for BMW 5 Series E28 520i (1982)

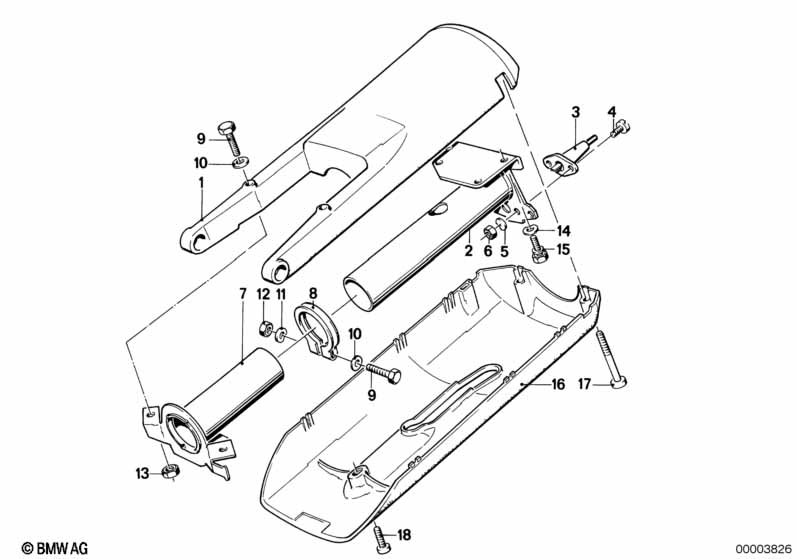

This Sloupek řízení-pažnice/výplň technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | nastavitelné | |||||||||
| 01 | Výplň horní díl | 1 | 09/1985 | 32311151353 | $160.39 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Výplň horní díl | 1 | 09/1985 | 32311151353 | $160.39 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Pažnice | 1 | 09/1985 | 32311151762 | $39.90 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Pažnice | 1 | 09/1985 | 32311151762 | $39.90 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kontaktní uhlík | 1 | 09/1985 | 32331350750 | $7.64 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kontaktní uhlík | 1 | 09/1985 | 32331350750 | $7.64 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Šroub s čočkovitou hlavou | M5X12-ZN | 2 | 09/1985 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 04 | Šroub s čočkovitou hlavou | M5X12-ZN | 2 | 09/1985 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 05 | Pružná podložka | B5 | 2 | 09/1985 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 05 | Pružná podložka | B5 | 2 | 09/1985 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 06 | Šestihranná matice | M5-8-ZNNIV SI | 2 | 09/1985 | 07119905729 | Shop at ECS Tuning | ||||
| 06 | Šestihranná matice | M5-8-ZNNIV SI | 2 | 09/1985 | 07119905729 | Shop at ECS Tuning | ||||
| 07 | Pažnice | 1 | 09/1985 | 32311151639 | $16.41 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Pažnice | 1 | 09/1985 | 32311151639 | $16.41 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Spona | 1 | 09/1985 | 32312682215 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Spona | 1 | 09/1985 | 32312682215 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M8X45-8.8-ZNS3 | 3 | 09/1985 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 09 | Šestihranný šroub | M8X45-8.8-ZNS3 | 3 | 09/1985 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 10 | Podložka | 8,4 | 3 | 09/1985 | 07119931697 | $0.40 | Shop at ECS Tuning | |||
| 10 | Podložka | 8,4 | 3 | 09/1985 | 07119931697 | $0.40 | Shop at ECS Tuning | |||
| 11 | Pružná podložka | 8,4X15-ZNS3 | 2 | 09/1985 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 11 | Pružná podložka | 8,4X15-ZNS3 | 2 | 09/1985 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 12 | Šestihranná matice | M8-8-ZNS3 | 2 | 09/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 12 | Šestihranná matice | M8-8-ZNS3 | 2 | 09/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 12 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 09/1985 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 12 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 09/1985 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 13 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 1 | 09/1985 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 13 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 1 | 09/1985 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 14 | Ozubená podložka | A6,4 | 4 | 09/1985 | 07119936133 | $0.38 | Shop at ECS Tuning | |||
| 14 | Ozubená podložka | A6,4 | 4 | 09/1985 | 07119936133 | $0.38 | Shop at ECS Tuning | |||
| 15 | Trhací šroub | M6X14 | 4 | 09/1985 | 32321109641 | $1.39 | Shop at ECS Tuning | |||
| 15 | Trhací šroub | M6X14 | 4 | 09/1985 | 32321109641 | $1.39 | Shop at ECS Tuning | |||
| 16 | Výplň spodní díl | 1 | 09/1985 | 32311152990 | $41.47 | Shop at ECS Tuning | ||||
| 16 | Výplň spodní díl | 1 | 09/1985 | 32311152990 | $41.47 | Shop at ECS Tuning | ||||
| 17 | Šroub s čočkovitou hlavou | M6X55 | 2 | 09/1985 | 07119906437 | $0.45 | UKONČENO | Shop at ECS Tuning | ||
| 17 | Šroub s čočkovitou hlavou | M6X55 | 2 | 09/1985 | 07119906437 | $0.45 | UKONČENO | Shop at ECS Tuning | ||
| 18 | Šroub s válcovou hlavou | M6X8 | 1 | 09/1985 | 07119906436 | $0.20 | Shop at ECS Tuning | |||
| 18 | Šroub s válcovou hlavou | M6X8 | 1 | 09/1985 | 07119906436 | $0.20 | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
