Sloupek řízení-pažnice/výplň for BMW 5 Series E28 518i (1987)

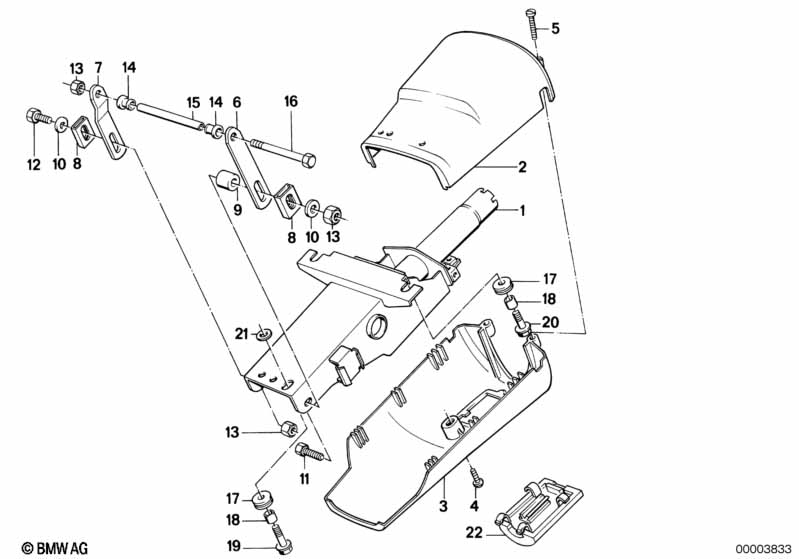

This Sloupek řízení-pažnice/výplň technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Vhodné pouze pro airbag | |||||||||
| 01 | Konzola uložení | 1 | 32311156098 | $91.79 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Výplň horní díl | 1 | 32311152204 | $65.02 | Shop at ECS Tuning | |||||
| 03 | Výplň spodní díl | 1 | 32311156468 | $42.20 | Shop at ECS Tuning | |||||
| 04 | Šroub s čočkovitou hlavou | M5X12-Z3-ZN | 2 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Řezný šroub | 5X15 | 2 | 32311158376 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Šroub s čočkovitou hlavou | M5X35-Z3 | 2 | 07119906833 | $0.24 | Shop at ECS Tuning | ||||
| 05 | Řezný šroub | 5X35 | 2 | 32311158355 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Páka levá | 1 | 32311156321 | $3.46 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Páka pravá | 1 | 32311156322 | $3.46 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Objímka | 2 | 32311154416 | $0.48 | Shop at ECS Tuning | |||||
| 09 | Distanční pouzdro | 1 | 32311156323 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Podložka | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Šestihranný šroub | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 13 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 14 | Ložiskové pouzdro | 2 | 32311153860 | $0.70 | Shop at ECS Tuning | |||||
| 15 | Distanční objímka | 1 | 32311150423 | $2.34 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Šestihranný šroub | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| 17 | Vodicí pouzdro | 3 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 18 | Distanční trubka | 3 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 19 | Trhací šroub | M8X28 9.8 | 1 | 32311158528 | $1.83 | Shop at ECS Tuning | ||||
| 20 | Šestihranný šroub s podložkou | M8X20-Z3-2 | 2 | 07119915159 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Podložka | 1 | 11614000131 | $1.80 | UKONČENO | Shop at ECS Tuning | ||||
| 22 | Kryt | 1 | 32311156471 | $7.29 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518i Sloupek řízení-pažnice/výplň?
- This technical diagram illustrates the Sloupek řízení-pažnice/výplň within the Řízení group for the 5 Series E28 518i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Konzola uložení (Part #32311156098).
- Which models use the hardware listed in this Sloupek řízení-pažnice/výplň?
- The hardware and components featured in the Sloupek řízení-pažnice/výplň are specific to the 5 Series E28 518i produced during 1987. These technical specifications ensure that parts like the Konzola uložení (32311156098) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sloupek řízení-pažnice/výplň assembly?
- Each item in the Sloupek řízení-pažnice/výplň corresponds to the numbered list below the illustration. For the 5 Series E28 518i, you can identify the Konzola uložení by locating its position on the schematic, which then links to the official BMW part number 32311156098 for the Řízení section.
