Handle unit left for BMW R45-R65LS..78-85 R45 (1978)

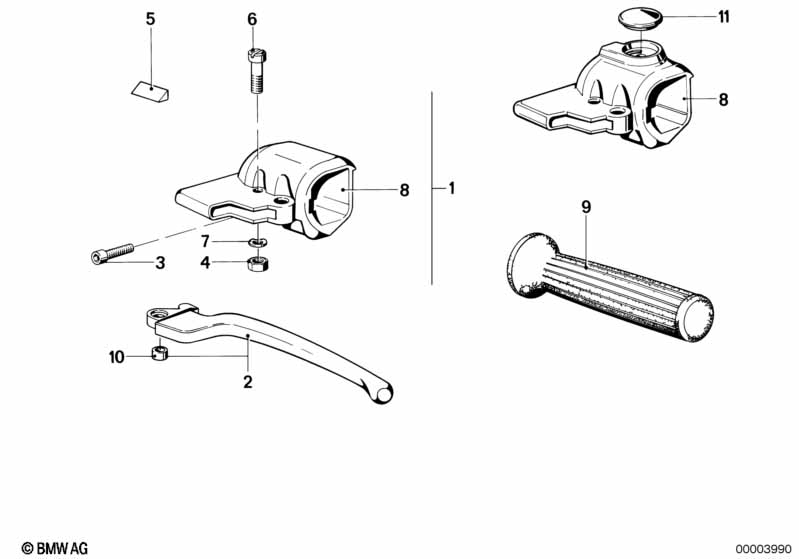

This Handle unit left technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handle unit left | 1 | 32721234723 | $156.46 | +core | Shop at ECS Tuning | ||||
| 02 | Ruční páka levá | 1 | 32721234848 | $56.60 | +core | Shop at ECS Tuning | ||||
| 03 | Šroub s válcovou hlavou | M5X16-8.8-ZNS | 1 | 07119900311 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice samojisticí | M6-10 ZN | 1 | 07/1985 | 07129922705 | $0.27 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Šestihranná matice samojisticí | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Klín | 2 | 32721232929 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Šroub | 1 | 32721230870 | $5.37 | Shop at ECS Tuning | |||||
| 07 | Pružná podložka | 1 | 32721230871 | $0.51 | Shop at ECS Tuning | |||||
| 08 | Pouzdro | 1 | 32721240796 | $118.11 | +core | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Víčko | 1 | 32721234724 | $7.09 | Shop at ECS Tuning | |||||
| 09 | Griffgummi eckig links | 1 | 32721237811 | $12.56 | Shop at ECS Tuning | |||||
| 10 | Pouzdro | 1 | 32721232662 | $1.71 | Shop at ECS Tuning | |||||
| 11 | Víčko | 1 | 32721234724 | $7.09 | Shop at ECS Tuning | |||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R45 Handle unit left?
- This technical diagram illustrates the Handle unit left within the Řízení group for the R45-R65LS..78-85 R45 produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Handle unit left (Part #32721234723).
- Which models use the hardware listed in this Handle unit left?
- The hardware and components featured in the Handle unit left are specific to the R45-R65LS..78-85 R45 produced during 1978. These technical specifications ensure that parts like the Handle unit left (32721234723) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Handle unit left assembly?
- Each item in the Handle unit left corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R45, you can identify the Handle unit left by locating its position on the schematic, which then links to the official BMW part number 32721234723 for the Řízení section.
