Jednotka rukojeti vpravo for BMW R45-R65LS..78-85 R45 (1978)

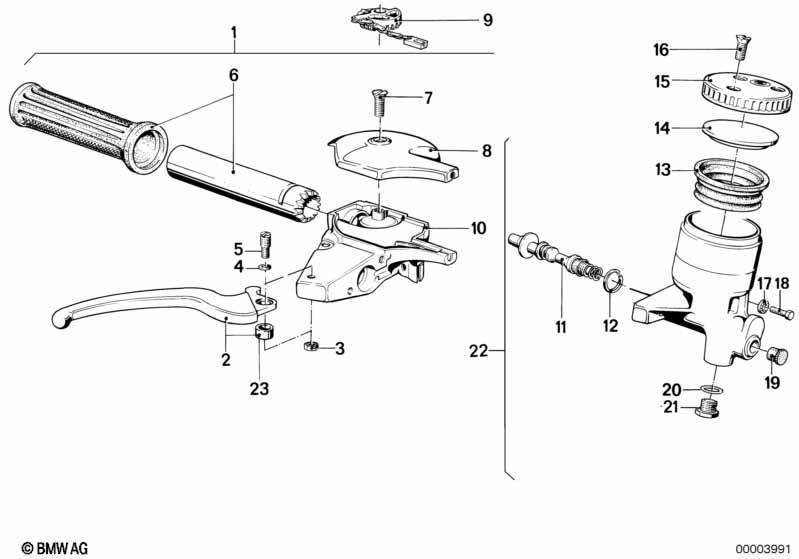

This Jednotka rukojeti vpravo technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | *FG Modell 81 | |||||||||
| 01 | Jednotka rukojeti vpravo | D=13MM | 1 | 32722302352 | $306.74 | UKONČENO, +core | Shop at ECS Tuning | |||
| 01 | Jednotka rukojeti vpravo | D=16MM | 1 | 32722302353 | $274.54 | UKONČENO, +core | Shop at ECS Tuning | |||
| 02 | Ruční páka pravá | 1 | 32721238384 | $45.64 | +core | Shop at ECS Tuning | ||||
| 03 | Matice samojisticí | M6 | 1 | 32728532969 | Shop at ECS Tuning | |||||
| 04 | Pružná podložka | 1 | 32721230871 | $0.51 | Shop at ECS Tuning | |||||
| 05 | Šroub | 1 | 32721238380 | $5.37 | Shop at ECS Tuning | |||||
| 06 | Griff eckig rechts | 1 | 32721454129 | $43.92 | Shop at ECS Tuning | |||||
| 07 | zápustný šroub | M5X15-ZN-SW | 1 | 32721454245 | $3.39 | Shop at ECS Tuning | ||||
| 08 | Víko | 1 | 32721238379 | $14.26 | Shop at ECS Tuning | |||||
| 09 | Vačka | 33MM | 1 | 32721238378 | $28.86 | Shop at ECS Tuning | ||||
| 10 | Pouzdro | 1 | 32721238377 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Píst | D=13MM | 1 | 32722302356 | $71.14 | +core | Shop at ECS Tuning | |||
| 11 | Píst | D=16MM | 1 | 32722302357 | $71.14 | Shop at ECS Tuning | ||||
| 13 | Vlnovec | 1 | 32721238387 | $7.56 | Shop at ECS Tuning | |||||
| 14 | Podložka | 1 | 32721238388 | $5.85 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Víko | 1 | 32721238389 | $5.88 | Shop at ECS Tuning | |||||
| 16 | Zápustný šroub | M5X16 | 3 | 32722351535 | $2.03 | Shop at ECS Tuning | ||||
| 17 | Ozubená podložka | A5,1 | 2 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 19 | Zátka | 1 | 32721236605 | $0.87 | Shop at ECS Tuning | |||||
| 20 | Těsnicí kroužek | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Šroubový uzávěr | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 22 | Válec s pístem | D=13MM | 1 | 32722302354 | $201.79 | UKONČENO, +core | Shop at ECS Tuning | |||
| 22 | Válec s pístem | D=16MM | 1 | 32722302355 | $201.79 | UKONČENO, +core | Shop at ECS Tuning | |||
| 23 | Pouzdro | 1 | 32721232662 | $1.71 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
