Bovden for BMW R45-R65LS..78-85 R65LS (1983)

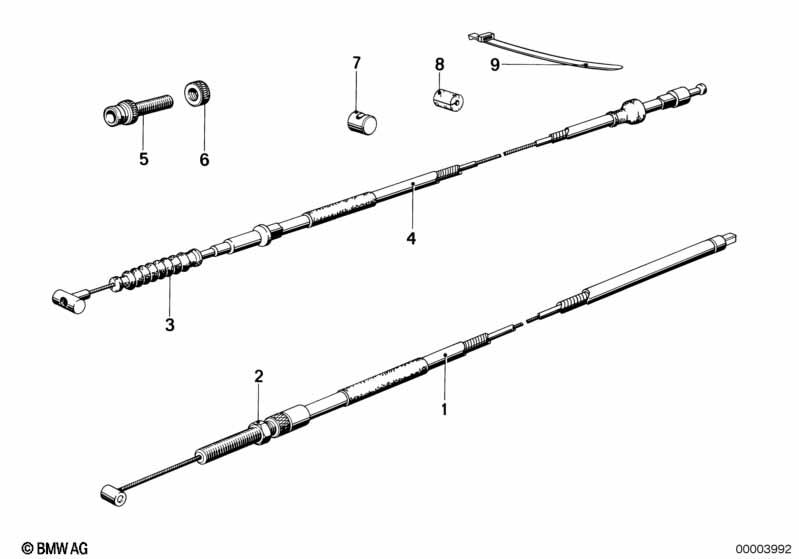

This Bovden technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Manžeta | 1 | 32732325866 | $3.45 | Shop at ECS Tuning | |||||
| 04 | Spojkové táhlo | L=1495MM | 1 | 32731237694 | $32.30 | +core | Shop at ECS Tuning | |||
| 05 | Seřízení bovdenu | 1 | 32721234854 | $7.52 | Shop at ECS Tuning | |||||
| 06 | Rýhovaná matice | M10X1 | 1 | 32721232516 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Uchycení maznice | D=10MM | 1 | 32721233550 | $6.23 | Shop at ECS Tuning | ||||
| 08 | Plstěný kroužek | 1 | 32721231610 | $1.50 | Shop at ECS Tuning | |||||
| 09 | Kabelová spojka | L=200MM/B=3,6MM | 2 | 61131367599 | $0.43 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
