Táhlo plynu/lanovod spouštěče for BMW R45-R65LS..78-85 R65LS (1983)

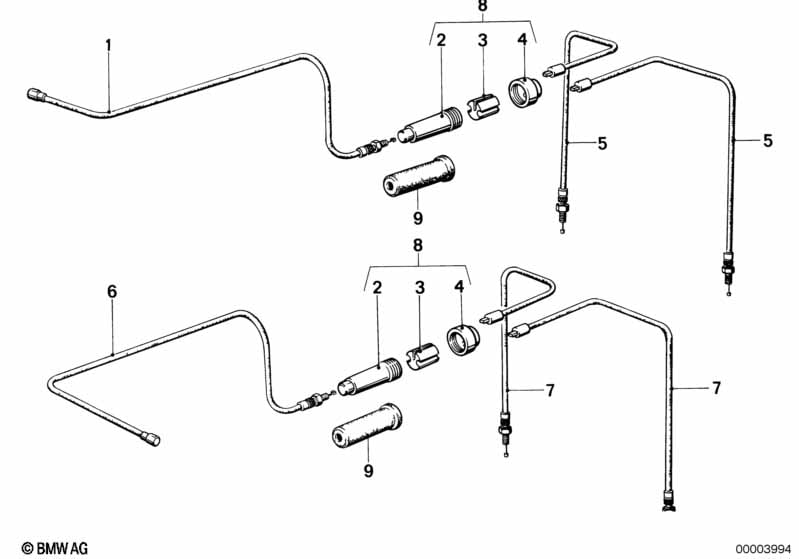

This Táhlo plynu/lanovod spouštěče technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FG* Modell 81 | |||||||||
| 01 | Lanovod plynu | L=640MM | 1 | 09/1980 | 32731242126 | $18.93 | Shop at ECS Tuning | |||
| 02 | Verteiler | 2 | 09/1980 | 32731242014 | $17.57 | Shop at ECS Tuning | ||||
| 03 | Verteiler | 2 | 09/1980 | 32731242014 | $17.57 | Shop at ECS Tuning | ||||
| 04 | Verteiler | 2 | 09/1980 | 32731242014 | $17.57 | Shop at ECS Tuning | ||||
| 05 | Lanovod plynu | L=487MM | 1 | 09/1980 | 32731242132 | $17.84 | +core | Shop at ECS Tuning | ||
| 05 | Lanovod plynu | L=382MM | 1 | 09/1980 | 32732302232 | $17.84 | Shop at ECS Tuning | |||
| 06 | Lanovod spouštěče | L=544MM | 1 | 09/1980 | 32731242591 | $17.84 | UKONČENO, +core | Shop at ECS Tuning | ||
| 07 | Lanovod spouštěče | L=564MM | 2 | 09/1980 | 32731242136 | $17.84 | +core | Shop at ECS Tuning | ||
| 08 | Verteiler | 2 | 09/1980 | 32731242014 | $17.57 | Shop at ECS Tuning | ||||
| 09 | Ochranné víčko | 2 | 09/1980 | 32732301342 | $3.57 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
