Jednotka rukojeti vpravo for BMW R45-R65LS..78-85 R65LS (1983)

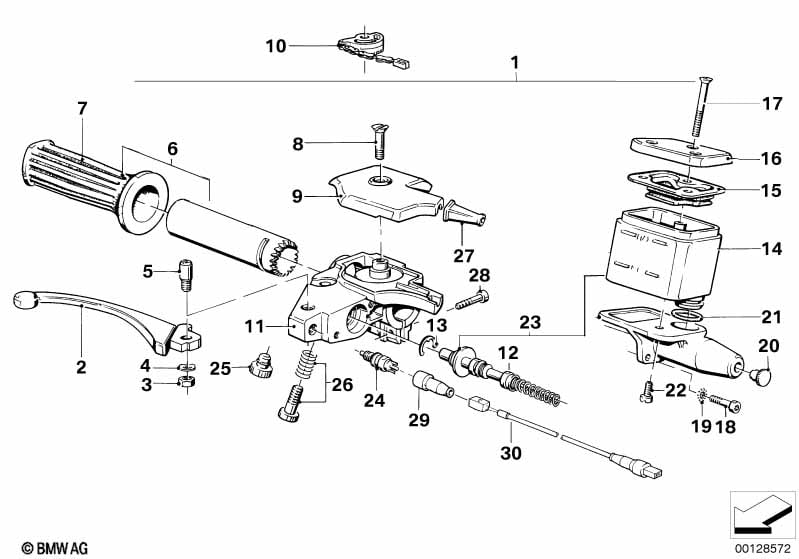

This Jednotka rukojeti vpravo technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jednotka rukojeti vpravo | D=15MM | 1 | 09/1981 | 32722302368 | $348.62 | +core | Shop at ECS Tuning | ||
| 02 | Ruční páka černá vpravo | 1 | 32721242555 | $53.98 | +core | Shop at ECS Tuning | ||||
| 03 | Matice samojisticí | M6 | 1 | 09/1980 | 32728532969 | Shop at ECS Tuning | ||||
| 04 | Pružná podložka | 1 | 09/1980 | 32721230871 | $0.51 | Shop at ECS Tuning | ||||
| 05 | Šroub | 1 | 09/1980 | 32721238380 | $5.37 | Shop at ECS Tuning | ||||
| 06 | Griff eckig rechts | 1 | 09/1980 | 32721454129 | $43.92 | Shop at ECS Tuning | ||||
| 07 | Pryžový kryt madla hranatý vpravo | 1 | 09/1980 | 32721237812 | $12.56 | +core | Shop at ECS Tuning | |||
| 08 | zápustný šroub | M5X15-ZN-SW | 1 | 09/1980 | 32721454245 | $3.39 | Shop at ECS Tuning | |||
| 09 | Víko | 1 | 09/1980 | 32721457050 | $27.01 | +core | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Vačka | 33MM | 1 | 09/1980 | 32721457080 | $28.86 | Shop at ECS Tuning | |||
| 10 | Vačka | 33MM | 1 | 09/1980 | 32721457080 | $28.86 | Shop at ECS Tuning | |||
| vhodné pouze pro | ||||||||||
| -- | Víko | X | 09/1980 | 32721457050 | $27.01 | +core | Shop at ECS Tuning | |||
| 11 | Pouzdro | 1 | 09/1980 | 32721242563 | $100.25 | +core | Shop at ECS Tuning | |||
| 12 | Píst | D=12MM | 1 | 09/1981 | 32722302371 | $71.14 | Shop at ECS Tuning | |||
| 12 | Píst | D=15MM | 1 | 09/1981 | 32722302372 | $71.14 | Shop at ECS Tuning | |||
| 13 | Pojistný kroužek | 17X1 | 1 | 09/1980 | 07119934620 | $1.29 | Shop at ECS Tuning | |||
| 14 | Vyrovnávací nádoba | 1 | 09/1980 | 32721242623 | $20.58 | +core | Shop at ECS Tuning | |||
| 15 | Vlnovec | 1 | 09/1980 | 32721242547 | $13.31 | Shop at ECS Tuning | ||||
| 16 | Víko | 1 | 09/1980 | 32721454945 | $12.83 | Shop at ECS Tuning | ||||
| 17 | Zápustný šroub černý | M5X55-4.8-ZN SW | 3 | 09/1980 | 32721242544 | $3.19 | Shop at ECS Tuning | |||
| 18 | Šroub s válcovou hlavou | M5X20-8.8 ZNS | 2 | 09/1980 | 07119920057 | $0.60 | Shop at ECS Tuning | |||
| 19 | Pružný kroužek | B5 | 2 | 09/1980 | 07119933060 | $0.11 | Shop at ECS Tuning | |||
| 20 | Zátka | 1 | 09/1980 | 32721242552 | $3.57 | UKONČENO | Shop at ECS Tuning | |||
| 21 | O-kroužek | 1 | 09/1980 | 32721242624 | $4.09 | Shop at ECS Tuning | ||||
| 22 | Šroub s čočkovou hlavou | 4X12-WN1412-H | 1 | 09/1980 | 32721242625 | $0.84 | UKONČENO | Shop at ECS Tuning | ||
| 23 | Válec s pístem | D=15MM | 1 | 09/1981 | 32722302370 | $253.68 | +core | Shop at ECS Tuning | ||
| 24 | Spínač brzdových světel | 1 | 09/1980 | 61311244070 | $13.70 | +core | Shop at ECS Tuning | |||
| 25 | Zátka | 1 | 09/1980 | 32721236605 | $0.87 | Shop at ECS Tuning | ||||
| 26 | Stavěcí šroub | 1 | 09/1980 | 32721230874 | $12.61 | Shop at ECS Tuning | ||||
| 27 | Manžeta | 1 | 09/1980 | 32731242495 | $5.76 | Shop at ECS Tuning | ||||
| 29 | Víčko | 1 | 09/1980 | 61311244071 | $2.94 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
