Řídicí tyče s tlumičem řízení for BMW 1500-2000CS 1800 (1968)

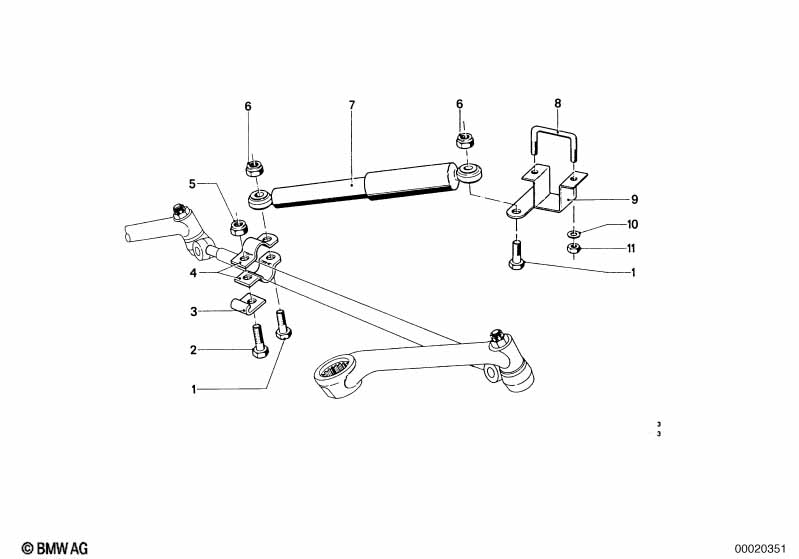

This Řídicí tyče s tlumičem řízení technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sada šroub 10 | M10X45 | 2 | 07509064066 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 03 | Uchycení | 1 | 32212750173 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Třmen | 2 | 32212750172 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Šestihranná matice samojisticí | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Šestihranná matice samojisticí | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Tlumič řízení | 1 | 32212750050 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Třmen | 1 | 32212750171 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Uchycení | 1 | 32212750170 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Podložka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Šestihranná matice | M8-8-ZNS3 | 2 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 11 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
