Sloupek řízení-pažnice/výplň for BMW 1500-2000CS 1800 (1968)
This Sloupek řízení-pažnice/výplň technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výplň spodní díl | 1 | 32311101815 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Pružná podložka | B6 | 3 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Šestihranný šroub | M6X30 | 2 | 07119912283 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Třmen | 1 | 32311101853 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Šestihranná matice | M8-8-ZNS3 | 1 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Šestihranná matice | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Pružná podložka | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Podložka | 8,4 | 1 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Pažnice | 1 | 32311105753 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Uchycení | 1 | 32312682117 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Podložka | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Výplň horní díl | 1 | 32311103751 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Sloupek řízení-pažnice/výplň?

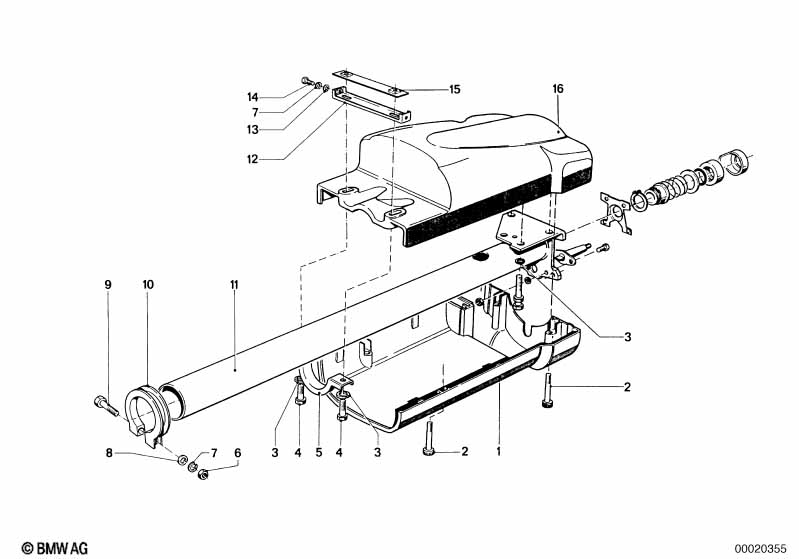

- This technical diagram illustrates the Sloupek řízení-pažnice/výplň within the Řízení group for the 1500-2000CS 1800 produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Výplň spodní díl (Part #32311101815).
- Which models use the hardware listed in this Sloupek řízení-pažnice/výplň?
- The hardware and components featured in the Sloupek řízení-pažnice/výplň are specific to the 1500-2000CS 1800 produced during 1968. These technical specifications ensure that parts like the Výplň spodní díl (32311101815) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sloupek řízení-pažnice/výplň assembly?
- Each item in the Sloupek řízení-pažnice/výplň corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Výplň spodní díl by locating its position on the schematic, which then links to the official BMW part number 32311101815 for the Řízení section.
