Volant Airbag bez multifunkční for BMW MINI R50 Cooper (2000)

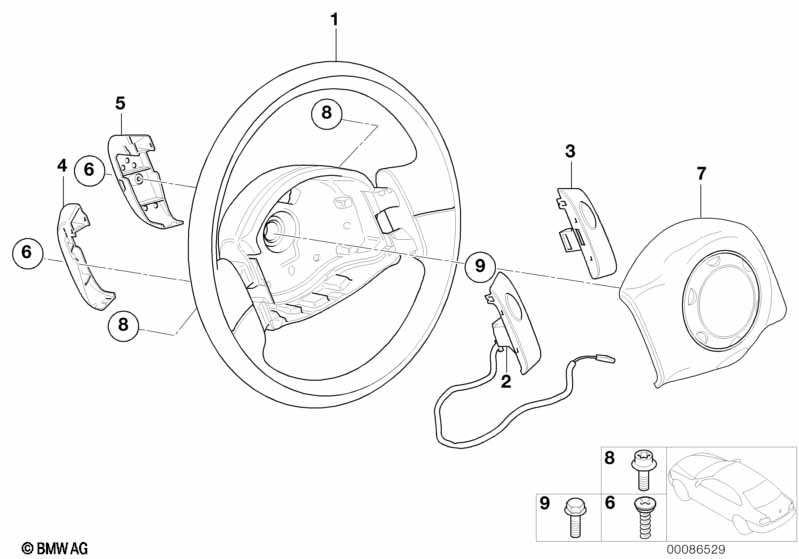

This Volant Airbag bez multifunkční technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Multifunkce pro volant |
S249A=Ne |
||||||||
| 01 | Volant pěna Airbag | 1 | 32341513095 | $229.95 | Shop at ECS Tuning | |||||
| Pro vozidla s Volant kůže Airbag |
S240A=Ano |
|||||||||
| 01 | Volant kůže Airbag „COOPER S“ | 1 | 07/2004 | 32330146479 | $366.95 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Volant kůže Airbag POZOR! Číslo dílu 6 770 427 již není k dostání. Je nutné objednat vysoce kvalitní volant "Cooper S" číslo dílu 0 146 479. |
S240A=Ano |
|||||||||
| 01 | Volant kůže Airbag | 1 | 07/2004 | 32336770427 | $312.95 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Spínač fanfára levá | 1 | 61316800904 | $80.19 | +core | Shop at ECS Tuning | ||||
| 03 | Spínač fanfára pravá | 1 | 61316800903 | $80.19 | +core | Shop at ECS Tuning | ||||
| 04 | Pouzdro spínač fanfára levé | 1 | 61311172243 | $36.27 | +core | Shop at ECS Tuning | ||||
| 05 | Pouzdro spínač fanfára pravé | 1 | 61311172242 | $36.27 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 06 | Šroub pro plasty | 2 | 32346758266 | $0.34 | Shop at ECS Tuning | |||||
| 07 | Ochranná deska airbag | 1 | 32306779259 | $440.86 | Shop at ECS Tuning | |||||
| 08 | Šroub Torx | M6X23 | 2 | 32306754624 | $6.78 | Shop at ECS Tuning | ||||
| 09 | Šroub Torx mikrozapouzdřený | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
