Volant Airbag multifunkční for BMW MINI R50 Cooper (2000)

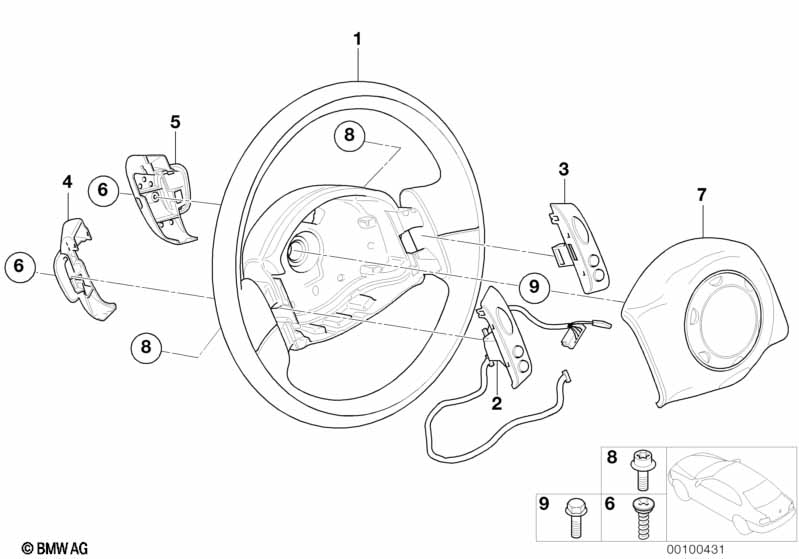

This Volant Airbag multifunkční technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Volant kůže Airbag a Multifunkce pro volant POZOR! Číslo dílu 6 770 428 již není k dostání. Je nutné objednat vysoce kvalitní volant "Cooper S" číslo dílu 0 146 480. |
S240A=Ano S249A=Ano |
|||||||||
| 01 | Volant kůže multifunkční | 1 | 07/2004 | 32336770428 | $394.95 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Multifunkce pro volant a Volant kůže COOPER S a Kůže „english“/panther-černá |
S249A=Ano S253A=Ano LNPN=Ano |
|||||||||
| 01 | Volant kůže „COOPER S“ multifunkční | SCHWARZ/GRAU | 1 | 09/2005 | 32336770336 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Spínač regulace rychlosti levý | 1 | 61316800898 | $120.27 | +core | Shop at ECS Tuning | ||||
| 03 | Spínač regulace rychlosti pravý | 1 | 61316800897 | $120.27 | +core | Shop at ECS Tuning | ||||
| 04 | Spínač rádio/telefon | 1 | 61311172234 | $80.19 | +core | Shop at ECS Tuning | ||||
| 05 | Spínač rádio | 1 | 61311172233 | $80.19 | +core | Shop at ECS Tuning | ||||
| 06 | Šroub pro plasty | 2 | 32346758266 | $0.34 | Shop at ECS Tuning | |||||
| 07 | Ochranná deska airbag | 1 | 32306779259 | $440.86 | Shop at ECS Tuning | |||||
| 08 | Šroub Torx | M6X23 | 2 | 32306754624 | $6.78 | Shop at ECS Tuning | ||||
| 09 | Šroub Torx mikrozapouzdřený | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Volant Airbag multifunkční?
- This technical diagram illustrates the Volant Airbag multifunkční within the Řízení group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Volant kůže multifunkční (Part #32336770428).
- Which models use the hardware listed in this Volant Airbag multifunkční?
- The hardware and components featured in the Volant Airbag multifunkční are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Volant kůže multifunkční (32336770428) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Volant Airbag multifunkční assembly?
- Each item in the Volant Airbag multifunkční corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Volant kůže multifunkční by locating its position on the schematic, which then links to the official BMW part number 32336770428 for the Řízení section.
